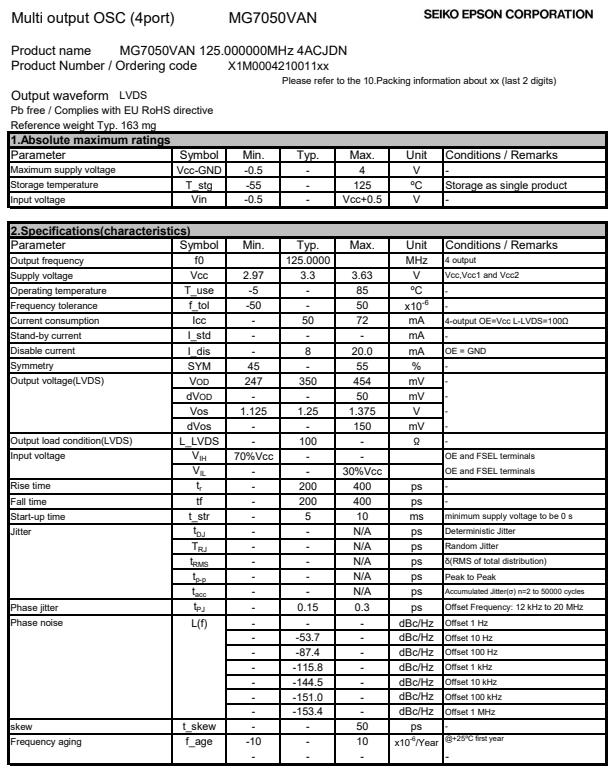

編碼X1M000421001100是一款7050mm的差分晶振適合于智能電表時鐘模塊，愛普生公司成立至今已有幾十年的發展，憑著自身的努力與拼搏，擁有先進的生產技術和高端的生產設備，通過自身的努力不斷為社會創造更大的價值，以實現自我價值的最大化，通過不斷打磨自身的產品，愛普生晶振很高興推出了的這款MG7050VAN晶振，編碼X1M000421001100，頻率125.000000兆赫，輸出WaveLVDS，電源電壓2.97 ~ 3.63 V，尺寸(LxWxH)7.00 x 5.00 x 1.60 mm，操作溫度-5至+85°C，頻率公差±50ppm，額外的OptionsN /輸出OSC(4端口)，具有非常高的穩定性，低抖動，低電壓的特點,非常適用于對設計面積敏感的智能電表時鐘模塊穿戴設備設計,這款微型的低電壓有源晶振,具有優良的耐熱性與耐環境特性,使得其成為智能電表時鐘模塊智能穿戴設備時鐘的最佳之選。

Product Number	Model	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.
X1M000431000800	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M000431000900	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1M000431001000	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1M000431001100	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C	+/-50 ppm
Product Number00	Model	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.
X1M000421000200	MG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M000421000300	MG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M000421000400	MG7050VAN	125.000000 MHz	7050晶振	LVDS	2.375 to 2.625 V	-20 to 70 °C	+/-50 ppm
X1M000421000500	MG7050VAN	644.531250 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C	+/-50 ppm
X1M000421000600	MG7050VAN	322.265625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C	+/-50 ppm
X1M000421000700	MG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-100 ppm
X1M000421000800	MG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M000421000900	MG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M000421001000	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M000421001100	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M000421001200	MG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M000421001300	MG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M000421001400	MG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M000421001500	MG7050VAN	322.265625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M000421001600	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C	+/-50 ppm

比起普通的晶體諧振器,有源晶振技術要求更高,起振性能更穩定,一般都是用在高端的產品身上,大致分為普通振蕩器SPXO，TCXO溫補晶振TCXO，VCXO壓控晶振，VC-TCXO壓控溫補晶振，OCXO恒溫晶振，差分晶振等。
