頻率：32.768KHZ
尺寸：1.6x1.0mm
SWS1129D16-32.768K,SWS112測量晶振,Suntsu音叉晶體，尺寸1.6x1.0mm，頻率32.768KHZ，美國松圖晶振，歐美進口晶振，水晶振動子，32.768KHZ音叉晶體，無源貼片晶振，1610超小型SMD晶振，SMD晶振，石英晶振，貼片石英晶體，無源晶振，無源貼片晶振，兩腳貼片晶振，無鉛環保晶振，32.768KHZ時鐘晶振，測量專用晶振，儀器設備晶振，實時時鐘晶振，無線應用晶振，小型設備晶振，網絡設備晶振，物聯網晶振，低損耗晶振，低功耗晶振，高質量晶振，具有小體積高質量的特點。
石英晶體產品超級適合用于測量，儀器設備，實時時鐘，無線應用程序，小型設備，網絡設備，物聯網等應用程序。SWS1129D16-32.768K,SWS112測量晶振,Suntsu音叉晶體.
SWS1129D16-32.768K,SWS112測量晶振,Suntsu音叉晶體，尺寸1.6x1.0mm，頻率32.768KHZ，美國松圖晶振，歐美進口晶振，水晶振動子，32.768KHZ音叉晶體，無源貼片晶振，1610超小型SMD晶振，SMD晶振，石英晶振，貼片石英晶體，無源晶振，無源貼片晶振，兩腳貼片晶振，無鉛環保晶振，32.768KHZ時鐘晶振，測量專用晶振，儀器設備晶振，實時時鐘晶振，無線應用晶振，小型設備晶振，網絡設備晶振，物聯網晶振，低損耗晶振，低功耗晶振，高質量晶振，具有小體積高質量的特點。
石英晶體產品超級適合用于測量，儀器設備，實時時鐘，無線應用程序，小型設備，網絡設備，物聯網等應用程序。SWS1129D16-32.768K,SWS112測量晶振,Suntsu音叉晶體.

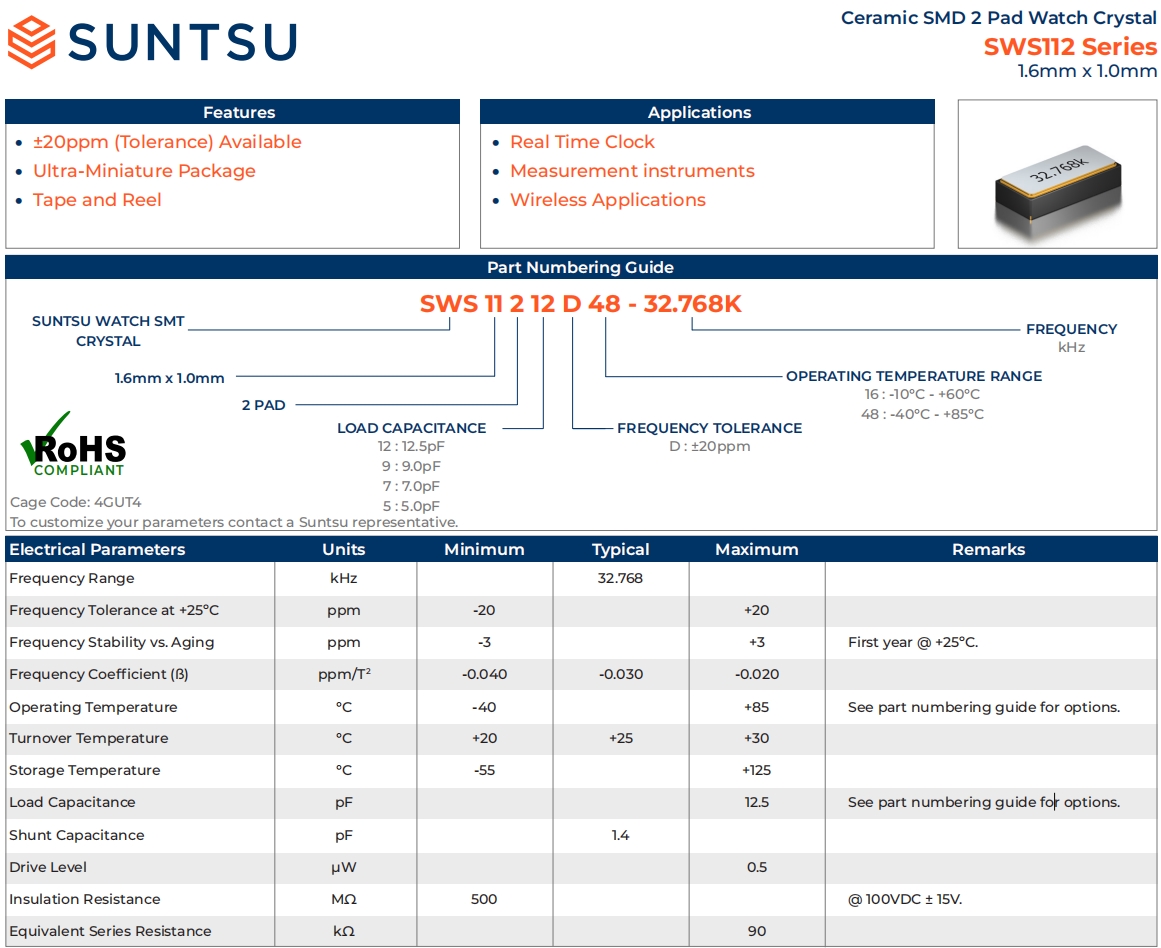

SWS1129D16-32.768K,SWS112測量晶振,Suntsu音叉晶體 參數表
| Electrical Parameters Units Minimum Typical Maximum Remarks | ||||||||||||||||||
| Frequency Range | kHz | 32.768 | ||||||||||||||||
| Frequency Tolerance at +25ºC | ppm | -20 | +20 | |||||||||||||||
| Frequency Stability vs. Aging | ppm | -3 | +3 | First year @ +25ºC. | ||||||||||||||
| Frequency Coefficient (?) | ppm/T2 | -0.040 | -0.030 | -0.020 | ||||||||||||||
| Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | ||||||||||||||
| Turnover Temperature | °C | +20 | +25 | +30 | ||||||||||||||
| Storage Temperature | °C | -55 | +125 | |||||||||||||||
| Load Capacitance | pF | 12.5 | See part numbering guide for options. | |||||||||||||||
| Shunt Capacitance | pF | 1.4 | ||||||||||||||||
| Drive Level | µW | 0.5 | ||||||||||||||||
| Insulation Resistance | M? | 500 | @ 100VDC ± 15V. | |||||||||||||||
| Equivalent Series Resistance | k? | 90 | ||||||||||||||||

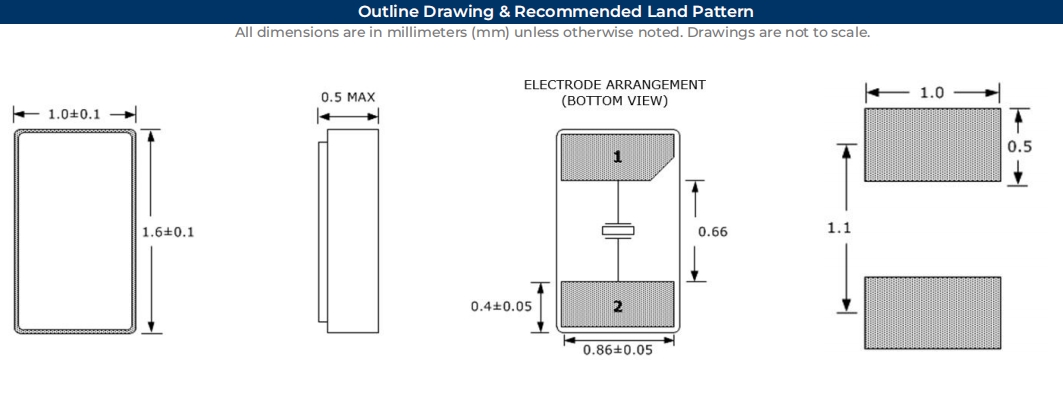

SWS1129D16-32.768K,SWS112測量晶振,Suntsu音叉晶體 尺寸圖
SWS1129D16-32.768K,SWS112測量晶振,Suntsu音叉晶體
32.768KHZ產品特點:
±20ppm（公差）可用
超小型封裝
磁帶和卷軸
| Part Number | Package Size | Load Cap. | Freq. Tolerance | Operating Temp. | Frequency |
| SWS11212D16-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS11212D48-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1127D48-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1129D16-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS1129D48-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS14412D48A-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS14412D48B-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1446D48A-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 6pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1446D48B-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 6pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1449D48A-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 9pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS21212D48-32.768K | 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS2129F48-32.768K | 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±10ppm | -40℃ - +85℃ | 32.768K |
| SWS31212D16-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS31212D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS3126D16-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 6pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS3126D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 6pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS3127D16-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS3127D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -40℃ - +85℃ | 32.768K音叉晶體 |
| SWS3129D16-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS3129D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS41212D16-32.768K | 4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS41212D48-32.768K | 4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS51212D16-32.768K | 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS5127D16-32.768K | 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS5129D16-32.768K | 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS61412D48-32.768K | 6.9X1.4 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS83412D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS83412D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS8346D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 6pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS8346D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 6pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS8347D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 7pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS8347D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 7pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS8349D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS8349D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 9pF | ±20ppm | -40℃ - +85℃ | 32.768K |
