頻率：100.000MHz
尺寸：7.0x5.0mm
MTRONPTI多頻振蕩器,M213228GL2N-100.000MHz,低相位噪聲6G晶振，美國進口晶振，MTRONPTI麥特倫皮晶振，型號：M21x系列晶振，編碼為：M213228GL2N-100.000MHz，電源電壓：1.8V操作，小體積晶振尺寸：7.0x5.0mm封裝，LVDS輸出晶振，差分晶振，差分晶體振蕩器，六腳貼片晶振，石英晶振，石英晶體振蕩器，貼片石英晶振，工作溫度范圍：-40℃至+85℃。M21x系列多頻振蕩器利用MtronPTI的Qik ChipTM技術，為所有輸出頻率提供一個非常低的抖動時鐘。M21x可提供多達4個不同頻率的輸出，從10MHz到1.4 GHz。M21x利用穩定的基本第三泛音晶體和Qik ChipTM IC來提供廣泛的輸出頻率范圍。使用這種設計方法，M21x在頻率穩定性、抖動、相位噪聲和長期可靠性方面提供了卓越的性能。有源晶振具有超小型，輕薄型，高精度，高性能，高品質，低抖動，低功耗，低相位噪聲，低電壓，低耗能等特點。被廣泛應用于：全球/區域選擇，前向糾錯（FEC）/可選功能應用程序，電信設備，如SONET / SDH / DWDM / FEC / SERDES / OC-3到OC-192，1-2-4-10千兆光纖通道，無線基站/無線局域網/千兆以太網，xDSL，網絡通信，航空電子飛行控制，軍事通信，時鐘和數據恢復，低抖動時鐘生成，頻率邊緣
MTRONPTI多頻振蕩器,M213228GL2N-100.000MHz,低相位噪聲6G晶振 參數表
| PARAMETER | Symbol | Min. | Typ. | Max. | Units | Condition/Notes | |||||||
| Frequency Range | F |
50 10 |
1400 150 |
MHz |
LVPECL/LVDS/CML - See Note 1 HCMOS |
||||||||
| Operating Temperature | TA |
-20 to +70 -40 to +85 |
℃ ℃ |
Customer Specified | |||||||||
| Storage Temperature | TS | -55 | +125 | ℃ | |||||||||
| Frequency Stability | ΔF/F | See Ordering Information | ppm | See Note 2 | |||||||||
|
Aging 1st Year Thereafter (per year) |
-3 -1 |
+3 +1 |
ppm ppm |
||||||||||
| Supply Voltage | Vcc |
1.71 2.375 3.135 |
1.8 2.5 3.3 |
1.89 2.625 3.465 |
V V V |
||||||||
| Input Current | Icc |
125 105 |
mA mA |
LVPECL/HCMOS/CML LVDS |

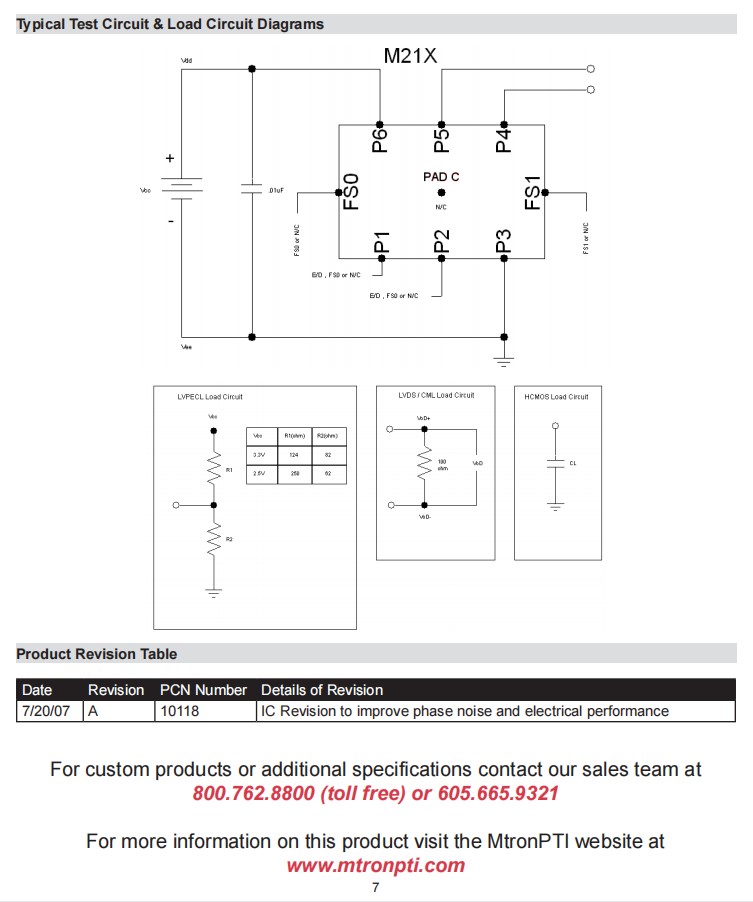

|||||||||
| Load |
See Note 3 LVPECL Waveform LVDS/CML Waveform CMOS Waveform |
||||||||||||
|
50 Ohms to (Vcc –2) Vdc 100 Ohm differential load |
|||||||||||||
| 15 | pF | ||||||||||||
| Symmetry (Duty Cycle) | 45 | 55 | % |
LDPECL: Vdd – 1.3 V LVDS: 1.25 V |
|||||||||
| Output Skew |
20 15 20 |
ps ps ps |
LVPECL CML LVDS |
||||||||||
| Differential Voltage | Vod | 250 | 350 | 450 | mV | LVDS | |||||||
| Vod | 0.7 | 0.95 | 1.20 | Vpp | CML | ||||||||
|
Common Mode Output Voltage |
Vcm | 1.2 | V | LVDS | |||||||||
| Logic “1” Level | Voh | Vcc -1.02 | V | LVPECL | |||||||||
| 90% Vdd | HCMOS | ||||||||||||
| Logic “0” Level | Vol | Vcc -1.63 | V | LVPECL | |||||||||
| 10% Vdd | HCMOS | ||||||||||||
| Rise/Fall Time | Tr/Tf | 0.23 | 0.35 | ns | @ 20/80% LVPECL, LVDS, CML | ||||||||
| 6.0 | ns | Ref. 10%-90% Vdd HCMOS | |||||||||||
|
Enable Function Option B |
80% Vcc min. or N/C: Output active 0.5V max: Output disables to high-Z |
Customer Specified | |||||||||||
|
Enable Function Option S |
0.5V max or N/C: Output active 80% Vcc min: Output disables to high-Z |
Customer Specified | |||||||||||
| Tristate Function |
Input Logic “1” or floating: output active Input Logic “0”: output disables to high-Z |
Customer Specified | |||||||||||

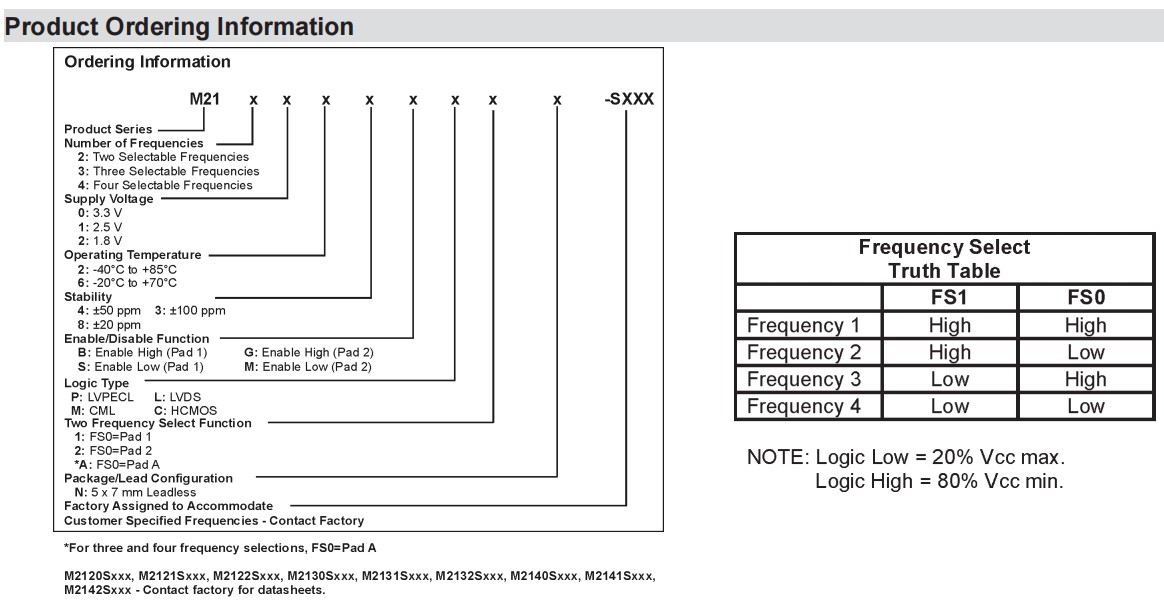

| Frequency Selection | See Truth Table | ||||||||||||
| Settling Time | 10 | ms | To within ± 1 ppm of frequency | ||||||||||
| Start up Time | 10 | ms | |||||||||||
| Phase Jitter | |||||||||||||
| @ 622.08 MHz | φJ | 0.25 | ps RMS |
LVPECL/LVDS/CML Integrated 12 kHz – 20 MHz |
|||||||||
| @ 125 MHz | 0.50 | ps RMS | HCMOS (12 kHz – 20 MHz) | ||||||||||
| Mechanical Shock | Per MIL-STD-202, Method 213, Condition C (100 g’s, 6 mS duration, ½ sinewave) | ||||||||||||
| Vibration | Per MIL-STD-202, Method 201 & 204 (10 g’s from 10-2000 Hz) | ||||||||||||
| Hermeticity | Per MIL-STD-202, Method 112, (1x10-8 atm. cc/sof Helium) | ||||||||||||
| Thermal Cycle | Per MIL-STD-883, Method 1010, Condition B (-55℃ to +125℃, 15 min. dwell, 10 cycles) | ||||||||||||
| Solderability | Per EIAJ-STD-002 | ||||||||||||

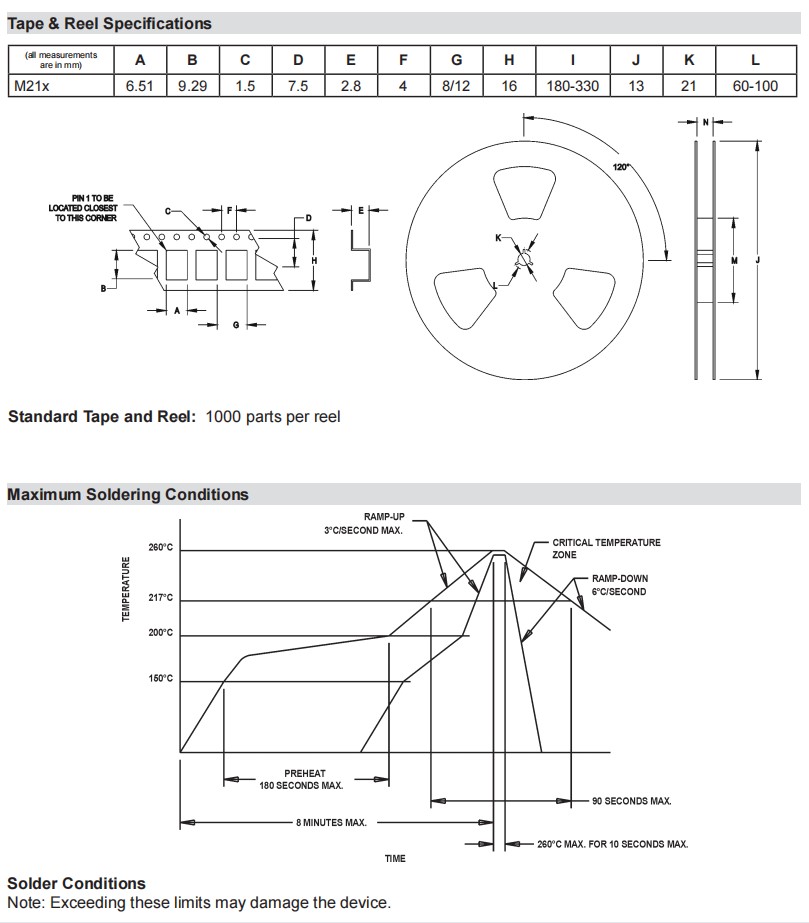

| Max. Soldering Cond. | See solder profile, Figure 1 | ||||||||||||

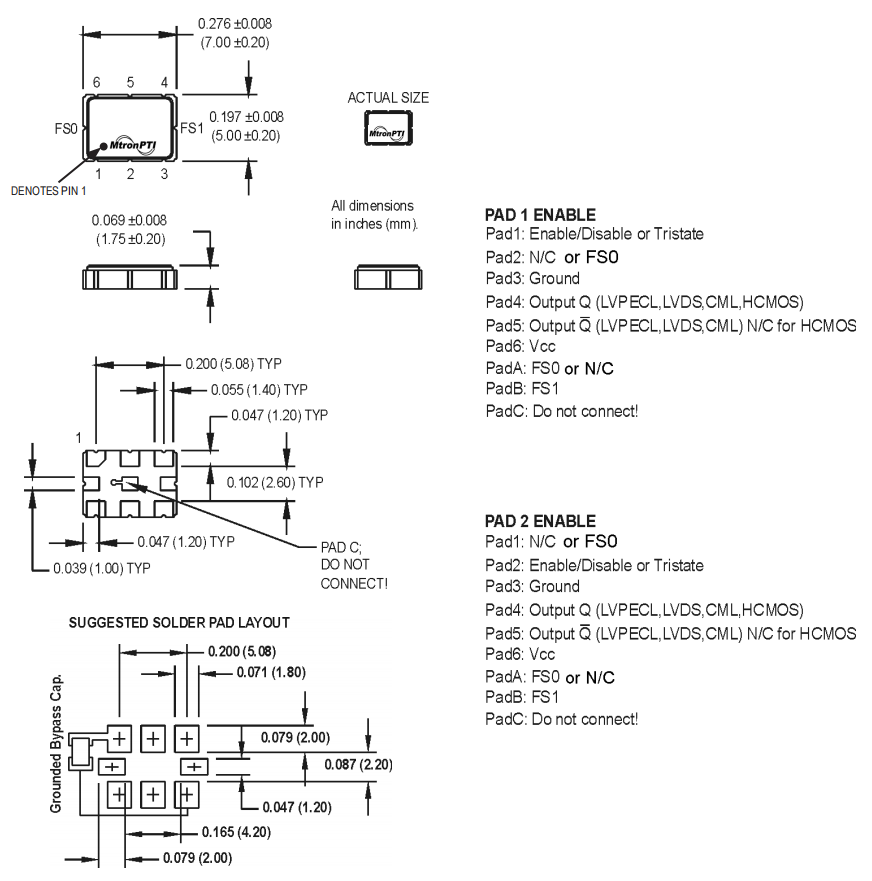

MTRONPTI多頻振蕩器,M213228GL2N-100.000MHz,低相位噪聲6G晶振 尺寸圖

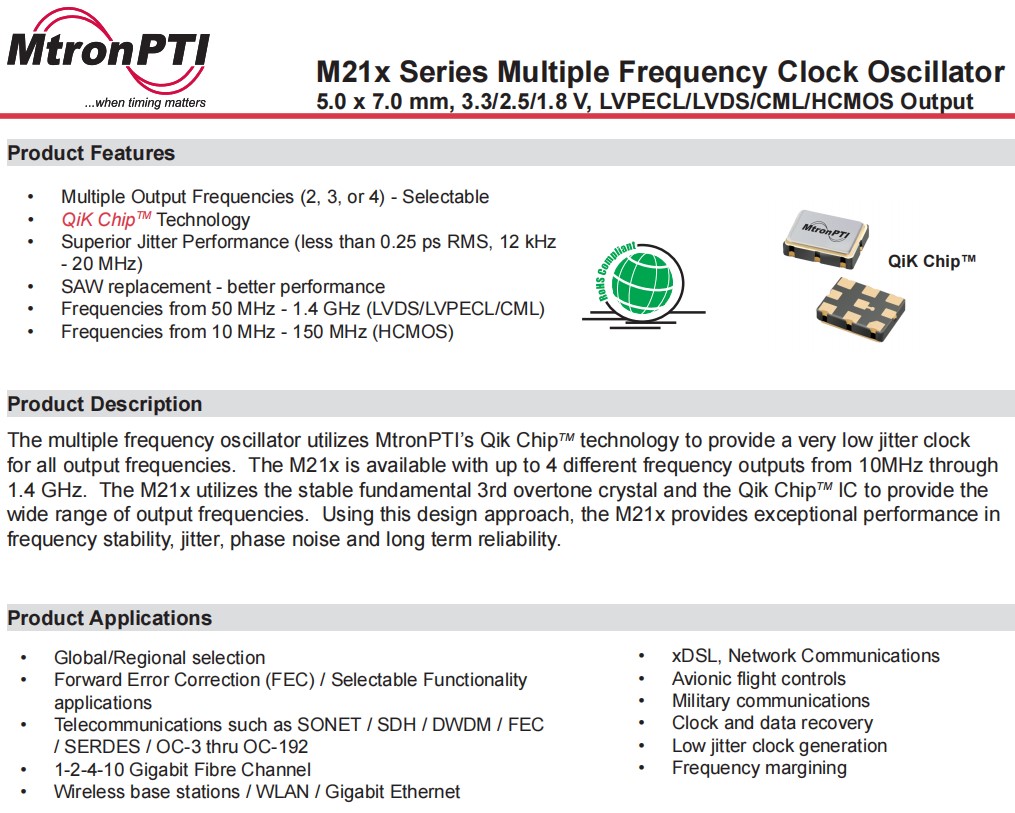

MTRONPTI多頻振蕩器,M213228GL2N-100.000MHz,低相位噪聲6G晶振
產品特點：
多個輸出頻率（2、3或4）-可選擇
QiK ChipTM技術
卓越的抖動性能（小于0.25 ps RMS，12kHz-20MHz）
SAW更換-更好的性能
頻率范圍為50 MHz-1.4 GHz（LVDS/LVPECL/CML）
頻率范圍為10 MHz-150 MHz（HCMOS）振蕩器
應用于：
全球/區域選擇
前向糾錯（FEC）/可選功能應用程序
電信，如SONET/SDH/DWDM/FEC/SERDES/OC-3至OC-192
1-2-4-10千兆光纖通道
無線基站/WLAN/千兆以太網
xDSL，網絡通信
航空電子飛行控制
軍事通信
時鐘和數據恢復
低抖動時鐘生成
頻率邊緣
