頻率：33.000MHz
尺寸：12.5x4.5mm
33MHz,CSM4Z-A2B3C3-40-33.0D18,CSM4,Cardinal無線局域網晶振，美國進口晶振，Cardinal晶振，卡迪納爾晶振，型號：CSM4系列，編碼為：CSM4Z-A2B3C3-40-33.0D18，頻率：33.000MHz，頻率穩定性：±30ppm，工作溫度范圍：-40℃至+85℃，負載電容：18pF，小體積晶振尺寸：12.5x4.5mm金屬包裝，是一款橢圓形金屬殼封裝晶振，低輪廓表面安裝晶體，兩腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，無鉛環保晶振，SMD晶體，諧振器。被廣泛用于：通訊設備晶振，無線網絡晶振，藍牙模塊晶振，無線局域網晶振，MPU，微控制器，機頂盒等應用.
33MHz,CSM4Z-A2B3C3-40-33.0D18,CSM4,Cardinal無線局域網晶振，產品特點：
•薄型表面貼裝水晶
•封裝是自動表面安裝組件和回流焊實踐的理想選擇
•CSM1-4.6毫米；CSM4-3.5毫米；CSM5-3.0mm高
•AT切割水晶，無源晶振
•頻率范圍：3.579545MHz至80MHz

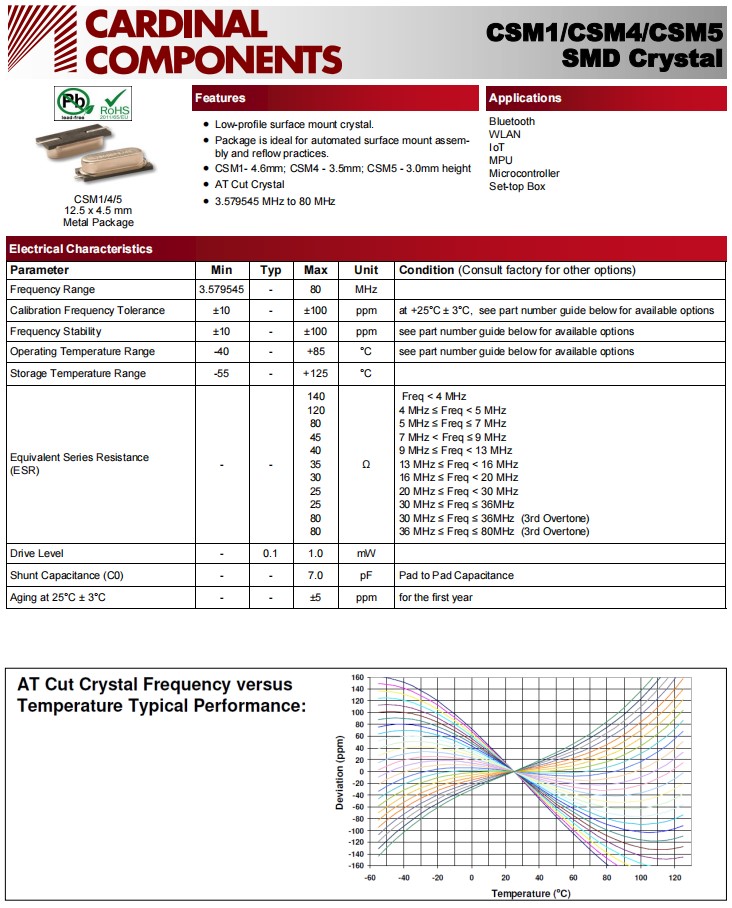

33MHz,CSM4Z-A2B3C3-40-33.0D18,CSM4,Cardinal無線局域網晶振,參數表
| Parameter | Min | Typ | Max | Unit | Condition (Consult factory for other options) | |||||||||||||||||||||||
| Frequency Range |
|
33 |
|
MHz | ||||||||||||||||||||||||
| Calibration Frequency Tolerance | ±10 | - | ±100 | ppm | at +25°C ± 3°C, see part number guide below for available options | |||||||||||||||||||||||
| Frequency Stability | ±10 | - | ±100 | ppm | see part number guide below for available options | |||||||||||||||||||||||
| Operating Temperature Range | -40 | - | +85 | °C | see part number guide below for available options | |||||||||||||||||||||||
| Storage Temperature Range | -55 | - | +125 | °C | ||||||||||||||||||||||||
|
Equivalent Series Resistance (ESR) |
- | - |
140 120 80 45 40 35 30 25 25 80 80 |
Ω |
Freq < 4 MHz 4 MHz ≤ Freq < 5 MHz 5 MHz ≤ Freq ≤ 7 MHz 7 MHz < Freq ≤ 9 MHz 9 MHz ≤ Freq < 13 MHz 13 MHz ≤ Freq < 16 MHz 16 MHz ≤ Freq < 20 MHz 20 MHz ≤ Freq < 30 MHz 30 MHz ≤ Freq ≤ 36MHz 30 MHz ≤ Freq ≤ 36MHz (3rd Overtone) 36 MHz ≤ Freq ≤ 80MHz (3rd Overtone) |
|||||||||||||||||||||||
| Drive Level | - | 0.1 | 1.0 | mW | ||||||||||||||||||||||||
| Shunt Capacitance (C0) | - | - | 7.0 | pF | Pad to Pad Capacitance | |||||||||||||||||||||||
| Aging at 25°C ± 3°C | - | - | ±5 | ppm | for the first year | |||||||||||||||||||||||

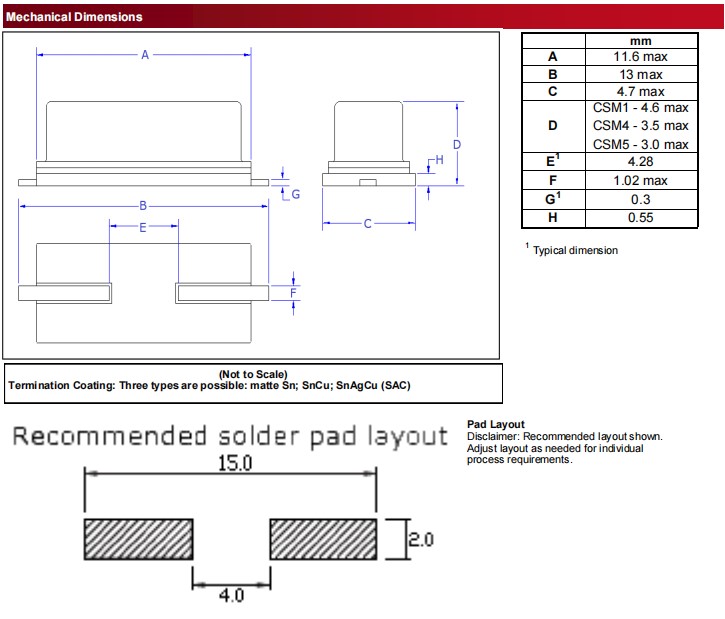

33MHz,CSM4Z-A2B3C3-40-33.0D18,CSM4,Cardinal無線局域網晶振,尺寸圖
| 晶振采購 | 品牌 | 型號 | 系列 | 頻率 | 頻率穩定度 |
| CSM4Z-A2B3C3-40-12.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 12MHz | ±30ppm |
| CSM4Z-A2B3C3-40-25.0D18-F | Cardinal晶振 | CSM4 | MHz Crystal | 25MHz | ±30ppm |
| CSM4Z-A2B3C3-40-10.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 10MHz | ±30ppm |
| CSM4Z-A2B3C3-40-20.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 20MHz | ±30ppm |
| CSM4Z-A2B3C3-60-6.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 6MHz | ±30ppm |
| CSM4Z-A2B3C3-60-8.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 8MHz | ±30ppm |
| CSM4Z-A2B3C3-40-29.49152D18-F | Cardinal晶振 | CSM4 | MHz Crystal | 29.49152MHz | ±30ppm |
| CSM4Z-A2B3C3-40-26.0D18-F | Cardinal晶振 | CSM4 | MHz Crystal | 26MHz | ±30ppm |
| CSM4Z-A2B3C3-180-4.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 4MHz | ±30ppm |
| CSM4Z-A2B3C3-60-9.8304D18 | Cardinal晶振 | CSM4 | MHz Crystal | 9.8304MHz | ±30ppm |
| CSM4Z-A2B3C3-40-11.0592D18 | Cardinal晶振 | CSM4 | MHz Crystal | 11.0592MHz | ±30ppm |
| CSM4Z-A2B3C3-40-16.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 16MHz | ±30ppm |
| CSM4Z-A2B3C3-60-7.3728D18 | Cardinal晶振 | CSM4 | MHz Crystal | 7.3728MHz | ±30ppm |
| CSM4Z-A2B3C3-40-14.7456D18 | Cardinal晶振 | CSM4 | MHz Crystal | 14.7456MHz | ±30ppm |
| CSM4Z-A2B3C3-40-33.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 33MHz | ±30ppm |
