當前位置：首頁 » 進口晶振 » Bomar晶振 » BC59,2012mm,BC59CCD112.5-32.768K,Bomar32.768K時鐘晶振

prevnext

BC59,2012mm,BC59CCD112.5-32.768K,Bomar32.768K時鐘晶振

頻率：32.768KHZ

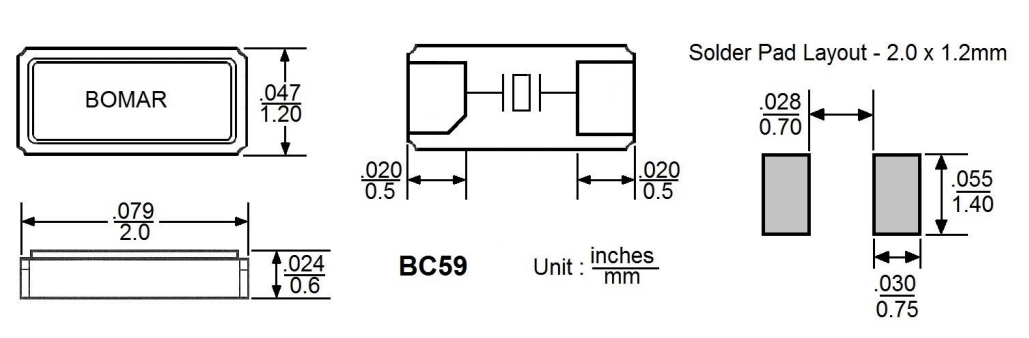

尺寸：2.0x1.2mm

BC59,2012mm,BC59CCD112.5-32.768K,Bomar32.768K時鐘晶振，尺寸2.0x1.2mm，頻率32.768KHZ，兩腳貼片晶振，陶瓷SMD晶體，無源貼片晶振，貼片陶瓷晶振，2012mm音叉晶體，歐美無源晶振，32.768KHZ無源晶振，輕薄型晶振，兩腳貼片晶振，32.768KHZ陶瓷諧振器，超小型SMD晶體，無源晶振，移動通信晶振，實時實時晶振，娛樂設備晶振，小型設備晶振，低損耗晶振，低功耗晶振，低成本晶振，高質量晶振，高性能晶振，具有高質量高性能的特點。

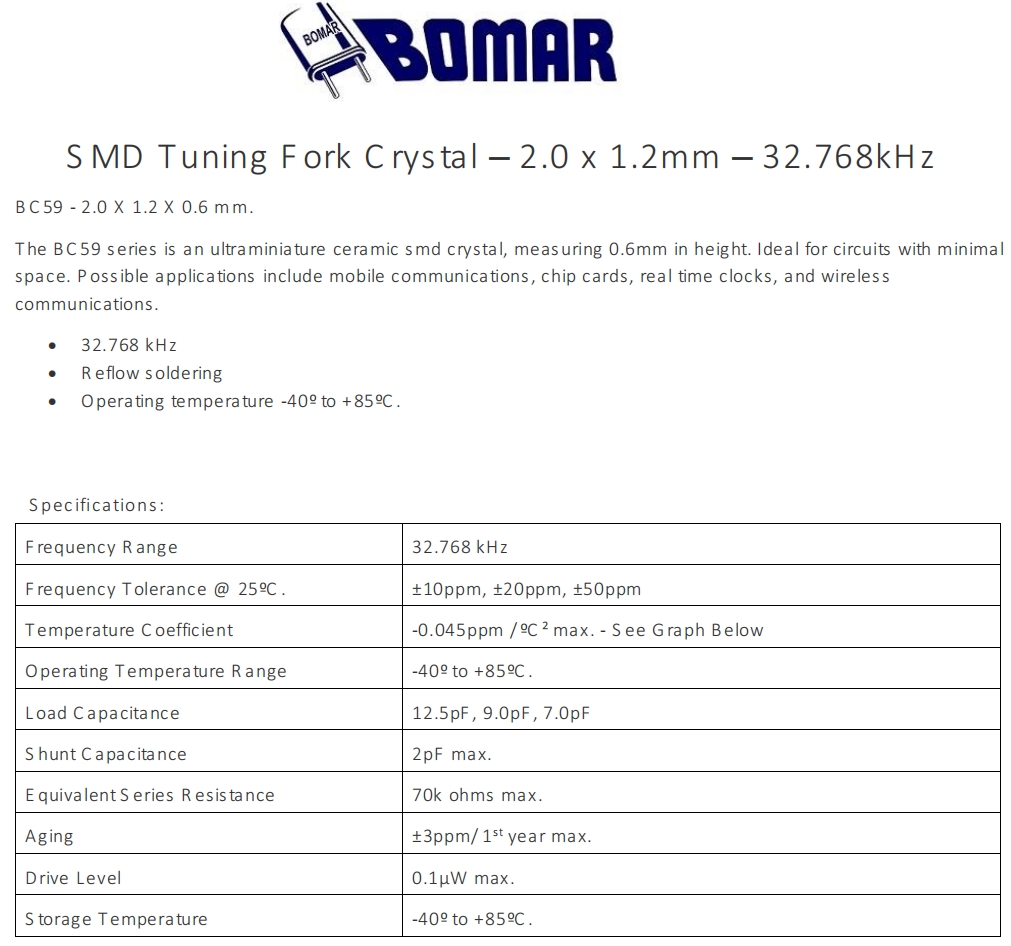

BC59系列是一種超小型陶瓷SMD晶體，高度為0.6毫米。非常適合最小的電路空間可能的應用包括移動通信、芯片卡、實時時鐘和無線通信。BC59,2012mm,BC59CCD112.5-32.768K,Bomar32.768K時鐘晶振.

訂購熱線：0755-29952551

LH-1

BC59,2012mm,BC59CCD112.5-32.768K,Bomar32.768K時鐘晶振 參數表

Frequency Range						32.768 kHz
Frequency Tolerance @ 25ºC.						±10ppm, ±20ppm, ±50ppm

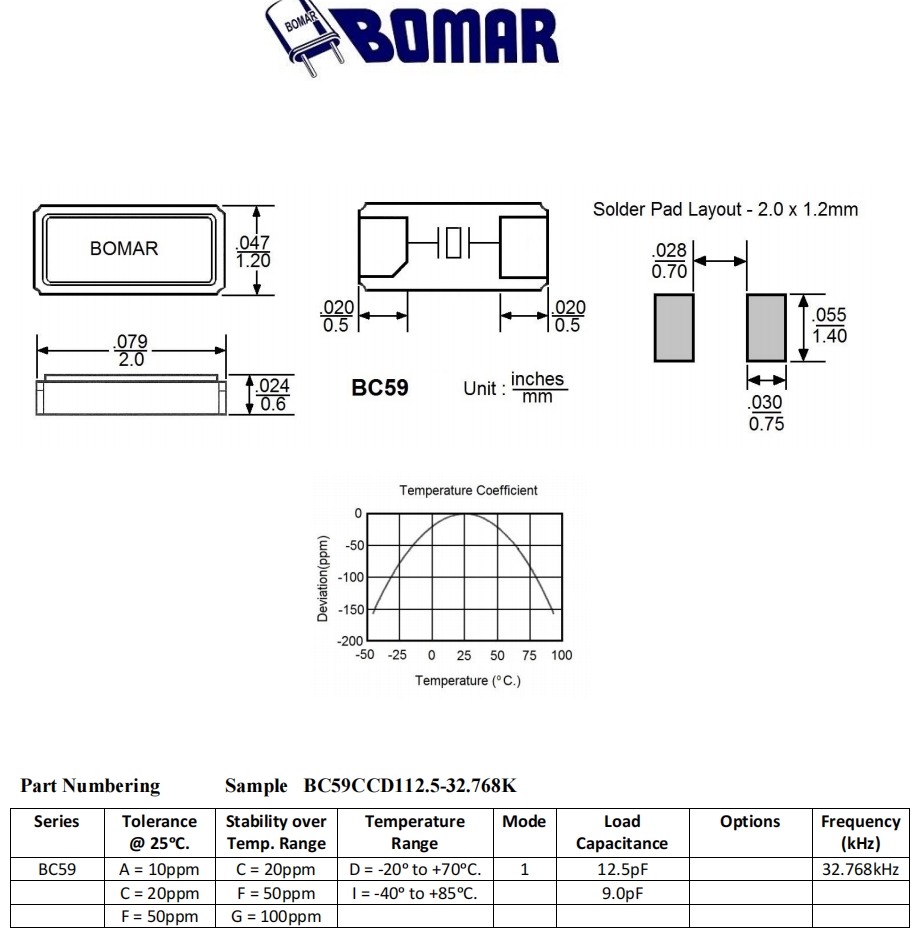

Temperature Coefficient						-0.045ppm / ºC² max. - See Graph Below
Operating Temperature Range						-40º to +85ºC.
Load Capacitance						12.5pF, 9.0pF, 7.0pF
Shunt Capacitance						2pF max.
Equivalent Series Resistance						70k ohms max.
Aging						±3ppm/ 1st year max.
Drive Level						0.1µW max.
Storage Temperature						-40º to +85ºC.
