頻率：25MHz
尺寸：3.2x2.5mm

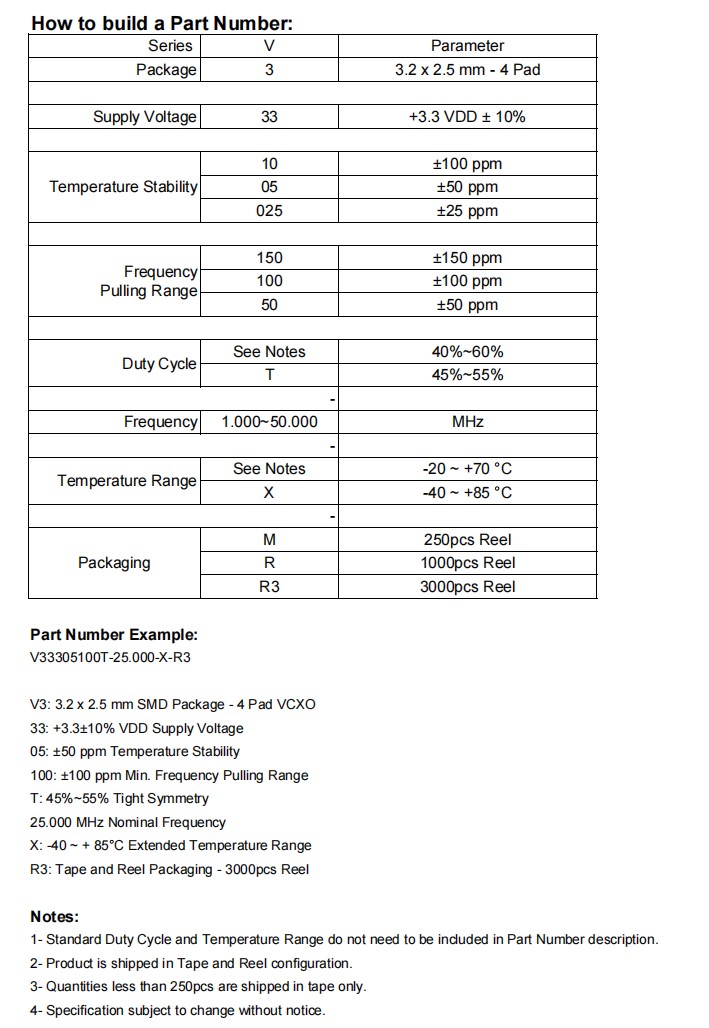

V33305100T-25.000-X-R3,3225mm,25MHz,Aker安碁VCXO晶振，臺灣Aker晶振，安碁晶振，型號：V3系列晶振，編碼為：V33305100T-25.000-X-R3貼片晶振，電壓：3.3V，±50ppm的溫度穩定性，頻率：25MHz，±100ppm最小脈沖頻率范圍，擴展溫度范圍：-40~+85°C，小體積晶振尺寸：3.2x2.5mm，四腳貼片晶振，石英晶振，有源晶振，VCXO壓控晶振，壓控晶體振蕩器，石英晶體振蕩器，3225晶振，SMD晶振。具有超小型晶振，輕薄型晶振，低抖動晶振，低功耗晶振，低電源電壓晶振，低相位噪聲晶振，低損耗晶振，低耗能等特點。應用于：微處理器晶振，通訊設備晶振，無線網絡晶振，藍牙模塊晶振，物聯網晶振，智能家居等應用。

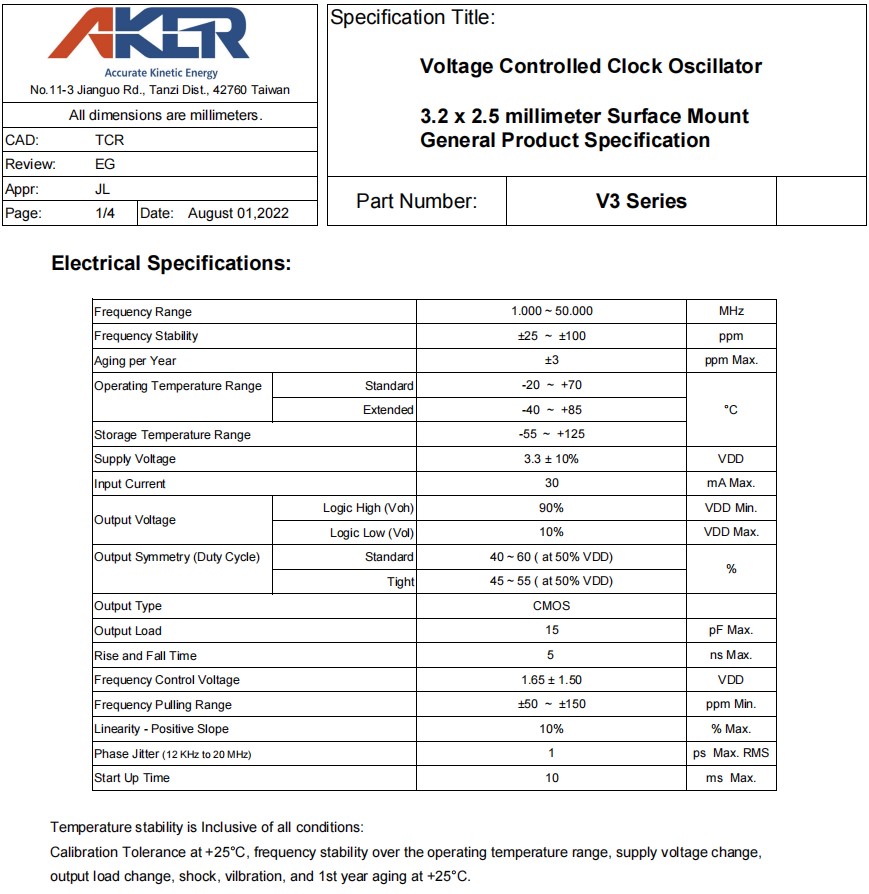

V33305100T-25.000-X-R3,3225mm,25MHz,Aker安碁VCXO晶振,參數表
Frequency Range
25
MHz
Frequency Stability
±25 ~ ±100
ppm
Aging per Year
±3
ppm Max.
Operating Temperature Range
Standard
-20 ~ +70
°C
Extended
-40 ~ +85
Storage Temperature Range
-55 ~ +125
Supply Voltage
3.3 ± 10%
VDD
Input Current
30
mA Max.
Output Voltage
Logic High (Voh)
90%
VDD Min.
Logic Low (Vol)
10%
VDD Max.
Output Symmetry (Duty Cycle)
Standard
40 ~ 60 ( at 50% VDD)
%
Tight
45 ~ 55 ( at 50% VDD)
Output Type
CMOS
Output Load
15
pF Max.
Rise and Fall Time
5
ns Max.
Frequency Control Voltage
1.65 ± 1.50
VDD
Frequency Pulling Range
±50 ~ ±150
ppm Min.
Linearity - Positive Slope
10%
% Max.
Phase Jitter (12 KHz to 20 MHz)
1
ps Max. RMS
Start Up Time
10
ms Max.

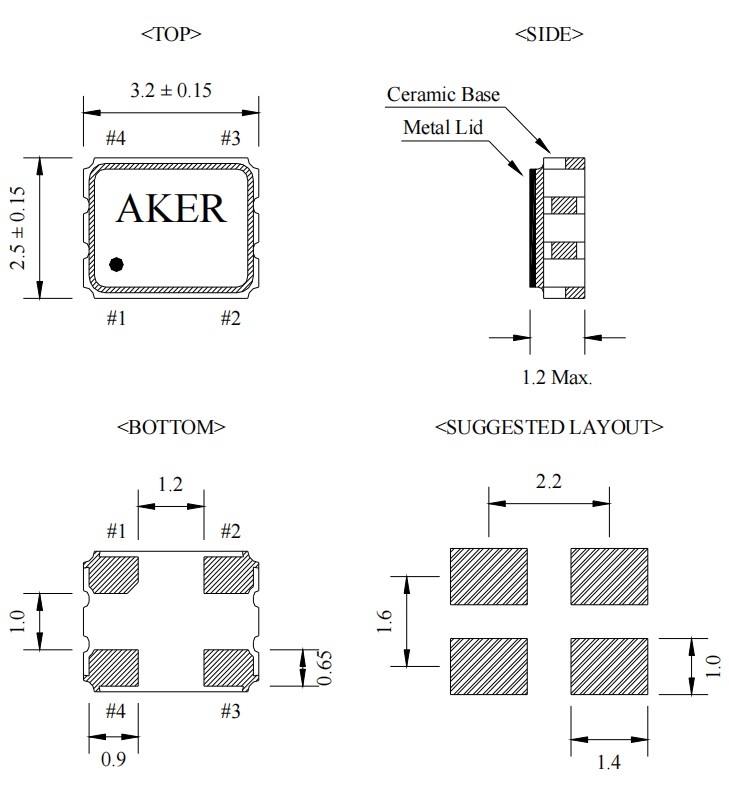

V33305100T-25.000-X-R3,3225mm,25MHz,Aker安碁VCXO晶振,尺寸圖
| 產品編碼 | 品牌 | 描述 | 系列 | 頻率 |
| S2M025T-24.000-X-R | Aker安碁 | XTAL OSC XO 24.0000MHZ HCMOS SMD | S2 | 24 MHz |
| S73305-20.000-X-15-R | Aker安碁 | XTAL OSC XO 20.0000MHZ HCMOS SMD | S7 | 20 MHz |
| S73305T-25.000-R | Aker安碁 | XTAL OSC XO 25.0000MHZ HCMOS SMD | S7 | 25 MHz |
| S73305T-25.000-X-15-R | Aker安碁 | XTAL OSC XO 25.0000MHZ HCMOS SMD | S7 | 25 MHz |
| S733025T-25.000-15-R | Aker安碁 | XTAL OSC XO 25.0000MHZ HCMOS SMD | S7 | 25 MHz |
| S73305T-32.000-R | Aker安碁 | XTAL OSC XO 32.0000MHZ HCMOS SMD | S7 | 32 MHz |
| S73305T-11.2896-X-30-R | Aker安碁 | XTAL OSC XO 11.2896MHZ HCMOS SMD | S7 | 11.2896 MHz |
| S73305T-50.000-X-R | Aker安碁 | XTAL OSC XO 50.0000MHZ HCMOS SMD | S7 | 50 MHz |
| S533025T-25.000-R | Aker安碁 | XTAL OSC XO 25.0000MHZ HCMOS SMD | S5 | 25 MHz |
| S73310-60.000-X-15-R | 安碁晶振 | XTAL OSC XO 60.0000MHZ HCMOS SMD | S7 | 60 MHz |
| S3M025T-8.000-R | Aker安碁 | XTAL OSC XO 8.0000MHZ HCMOS SMD | S3 | 8 MHz |
| S3M05T-8.000-R | Aker安碁 | XTAL OSC XO 8.0000MHZ HCMOS SMD | S3 | 8 MHz |
| S333025T-25.000-X-R | Aker安碁 | XTAL OSC XO 25.0000MHZ HCMOS SMD | S3 | 25 MHz |
| S533025T-25.000-X-R | Aker安碁 | XTAL OSC XO 25.0000MHZ HCMOS SMD | S5 | 25 MHz |
| S325025T-25.000-X-R | Aker安碁 | XTAL OSC XO 25.0000MHZ HCMOS SMD | S3 | 25 MHz |
| S218025T-24.000-R | Aker安碁 | XTAL OSC XO 24.0000MHZ HCMOS SMD | S2 | 24 MHz |
| S2M05T-24.000-R | Aker安碁 | XTAL OSC XO 24.0000MHZ HCMOS SMD | S2 | 24 MHz |
| S23305T-50.000-R | Aker安碁 | XTAL OSC XO 50.0000MHZ HCMOS SMD | S2 | 50 MHz |
| S233025T-25.000-R | Aker安碁 | XTAL OSC XO 25.0000MHZ HCMOS SMD | S2 | 25 MHz |
| S23305T-26.000-R | Aker安碁 | XTAL OSC XO 26.0000MHZ HCMOS SMD | S2 | 26 MHz |
| S23305T-50.000-X-R | Aker安碁 | XTAL OSC XO 50.0000MHZ HCMOS SMD | S2 | 50 MHz |
| S2M025T-25.000-X-R | Aker安碁 | XTAL OSC XO 25.0000MHZ HCMOS SMD | S2 | 25 MHz |
| S73305T-125.000-R | Aker安碁 | XTAL OSC XO 125.0000MHZ HCMOS | S7 | 125 MHz |
| S53305T-125.000-X-R | Aker安碁 | XTAL OSC XO 125.0000MHZ HCMOS | S5 | 125 MHz |
| S11805T-25.000-X1-R | Aker安碁 | XTAL OSC XO 25.0000MHZ CMOS SMD | S1 X1 | 25 MHz |
