頻率：24MHZ
尺寸：7.0×5.0mm
AAS24M000000DHJ18H,24MHZ,AA系列晶振,STD無源晶振,7050mm,美國進口晶振,STD Crystal,石英水晶振動子,貼片石英晶體,四腳貼片晶振,SMD晶體諧振器,無源晶振,7050晶振,24MHZ輕薄型晶振,尺寸7.0×5.0mm,頻率24MHZ,負載18pF,工作溫度-40~+85℃,高性能晶振,高品質晶振,低耗能晶振,低損耗晶振,無鉛環保晶振,微處理器晶振,測試設備晶振,儀器設備,數碼相機晶振.
AAS24M000000DHJ18H,24MHZ,AA系列晶振,STD無源晶振,7050mm特點:
低成本低損耗SMD貼片晶體類型
具有更嚴格的公差和穩定性
符合ROHS/無鉛

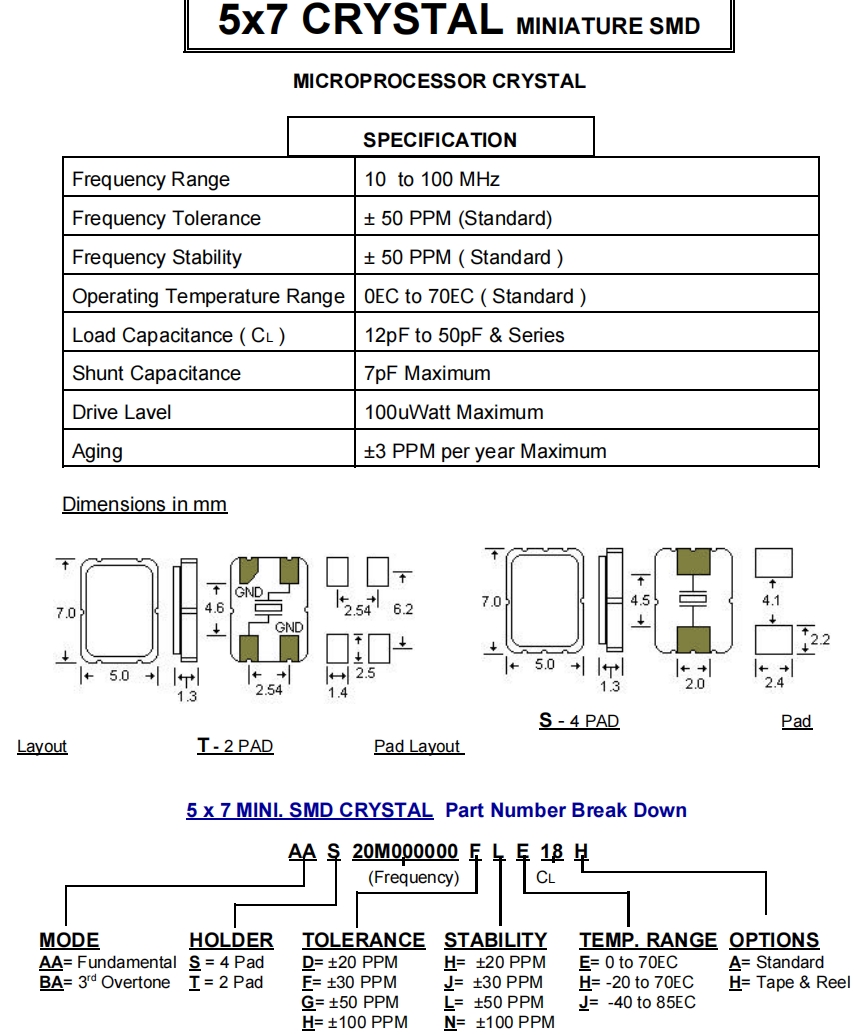

AAS24M000000DHJ18H,24MHZ,AA系列晶振,STD無源晶振,7050mm 參數表
| Frequency Range | 24 MHz | |||||||||
| Frequency Tolerance | ± 50 PPM (Standard) | |||||||||
| Frequency Stability | ± 50 PPM ( Standard ) | |||||||||
| Operating Temperature Range | 0EC to 70EC ( Standard ) | |||||||||
| Load Capacitance ( CL ) | 12pF to 50pF & Series | |||||||||
| Shunt Capacitance | 7pF Maximum | |||||||||
| Drive Lavel | 100uWatt Maximum | |||||||||
| Aging | ±3 PPM per year Maximum | |||||||||
AAS24M000000DHJ18H,24MHZ,AA系列晶振,STD無源晶振,7050mm 尺寸圖
