頻率：32.768K
尺寸：2.0*1.2mm
LFXTAL065455REEL,IQXC-25,IQD伊克德電子,兩腳貼片,SMD晶振,兩腳貼片,石英諧振器,低頻晶振,32.768k貼片,歐美高品質晶振,貼片諧振器,耐環境晶振,藍牙晶振,耐熱晶振,抗撞擊性在常規的衰落或運輸過程中的碰撞都不會影響搭配其的性能,即是是85度的環境依然可以運行,
LFXTAL065455REEL,IQXC-25,IQD伊克德電子,兩腳貼片,SMD晶振,兩腳貼片,石英諧振器,低頻晶振,32.768k貼片,歐美高品質晶振,貼片諧振器,耐環境晶振,藍牙晶振,耐熱晶振,抗撞擊性在常規的衰落或運輸過程中的碰撞都不會影響搭配其的性能,即是是85度的環境依然可以運行,
LFXTAL065455REEL,IQXC-25,IQD伊克德電子,兩腳貼片
| 原廠編碼 | LFXTAL065455REEL |
| 頻率 | 32.768KHz |
| 廠家 | IQD晶振 |
| 型號 | IQXC-25 |
| 頻率偏差 | ±20ppm |
| 負載電容 | 6pF |
| 工作溫度 | -40°C至85°C |

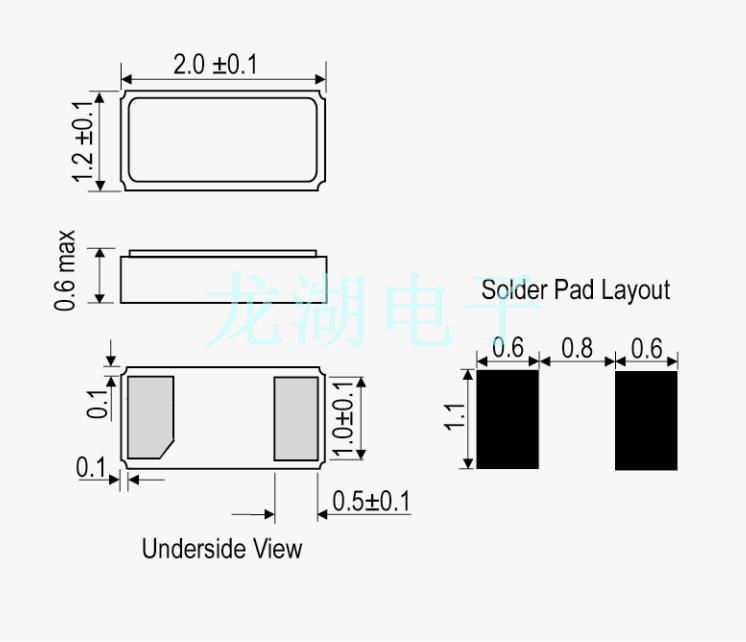

| 尺寸 | 2.0*1.2mm |
LFXTAL065455REEL,IQXC-25,IQD伊克德電子,兩腳貼片
| Mfr Part # | Mfr | Series | Frequency | Frequency Tolerance | Load Capacitance |
| LFXTAL082135CUTT | IQD 進口晶振 | IQXC-42 | 48 MHz | ±10ppm | 8pF |
| LFXTAL063334REEL | IQD 進口晶振 | CFPX-218 | 25 MHz | ±20ppm | 10pF |
| LFXTAL055474REEL | IQD 進口晶振 | CFPX-180 | 25 MHz | ±50ppm | 16pF |
| LFXTAL072352REEL | IQD 進口晶振 | 12SMX AUTO | 8 MHz | ±50ppm | 18pF |
| LFXTAL059461REEL | IQD 進口晶振 | IQXC-25 | 32.768 kHz | ±20ppm | 7pF |
| LFXTAL011164BULK | IQD 進口晶振 | HC49 | 3.072 MHz | ±20ppm | 20pF |
| LFXTAL036356REEL | IQD 進口晶振 | HC49/4HSMX | 12 MHz | ±20ppm | 18pF |
| LFXTAL058149RL3K | IQD 進口晶振 | CFPX-180 | 24 MHz | ±10ppm | 10pF |
| LFXTAL083409RL3K | IQD 進口晶振 | CFPX-180 | 26 MHz | ±10ppm | 12pF |
| LFXTAL078781RL3K | IQD 進口晶振 | CFPX-180 | 16 MHz | ±30ppm | 12pF |
| LFXTAL083407RL3K | IQD 進口晶振 | CFPX-180 | 24 MHz | ±20ppm | 12pF |
| LFXTAL036401REEL | IQD 進口晶振 | CFPX-104 | 12 MHz | ±20ppm | 18pF |
| LFXTAL071266REEL | IQD 進口晶振 | IQXC-42 AUTO | 48 MHz | ±10ppm | 10pF |
| LFXTAL066198REEL | IQD 進口晶振 | IQXC-90 | 32.768 kHz | ±20ppm | 9pF |
| LFXTAL085880 | IQD 進口晶振 | CFPX-180 | 25 MHz | ±20ppm | 8pF |
| LFXTAL085874 | IQD 進口晶振 | CFPX-180 | 20 MHz | ±20ppm | 12pF |
| LFXTAL085878 | IQD 進口晶振 | CFPX-180 | 24 MHz | ±20ppm | 12pF |
| LFXTAL085860 | IQD 進口晶振 | CFPX-180 | 12 MHz | ±20ppm | 12pF |
| LFXTAL085887 | IQD 進口晶振 | CFPX-180 | 32 MHz | ±10ppm | 8pF |
| LFXTAL009709 | IQD 進口晶振 | CFPX-217 | 32.768 kHz | ±20ppm | 7pF |
| LFXTAL085881 | IQD 進口晶振 | CFPX-180 | 25 MHz | ±20ppm | 12pF |
| LFXTAL085871 | IQD 進口晶振 | CFPX-180 | 16 MHz | ±20ppm | 8pF |
| LFXTAL085845 | IQD 進口晶振 | IQXC-42 | 25 MHz | ±10ppm | 8pF |
| LFXTAL085842 | IQD 進口晶振 | IQXC-42 | 16 MHz | ±10ppm | 8pF |
| LFXTAL085857 | IQD 進口晶振 | IQXC-42 | 40 MHz | ±10ppm | 10pF |
| LFXTAL084882 | IQD 進口晶振 | IQXC-217 | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL084884 | IQD 進口晶振 | IQXC-217 | 32.768 kHz | ±20ppm | 7pF |
| LFXTAL084883 | IQD 進口晶振 | IQXC-217 | 32.768 kHz | ±20ppm | 9pF |
| LFXTAL034654REEL | IQD 進口晶振 | HC49/4HSMX | 4 MHz | ±20ppm | 18pF |
| LFXTAL028392REEL | IQD 進口晶振 | HC49/4HSMX | 4.9152 MHz | ±30ppm | 18pF |
| LFXTAL011300REEL | IQD 進口晶振 | HC49/4HSMX | 4 MHz | ±30ppm | 30pF |
| LFXTAL017145REEL | IQD 進口晶振 | HC49/4HSMX | 10 MHz | ±30ppm | 30pF |
| LFXTAL017146REEL | IQD 進口晶振 | HC49/4HSMX | 20 MHz | ±30ppm | 30pF |
