頻率：32.768KHz

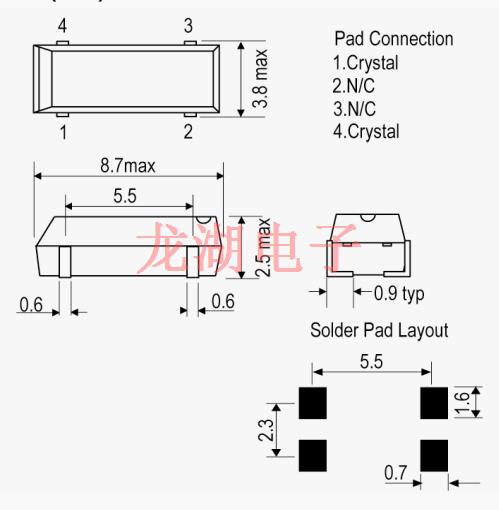

尺寸：8.7*3.8mm
LFXTAL050632,IQD英國晶振,四腳陶瓷貼片,6pF,英國伊克德晶體諧振器,高耐熱晶振,高穩定晶振,高精度晶振,無源晶振,出色的避光性能夠適用在一些需要需要避光的產品中,四腳SMD晶振,耐濕度晶振,兒童遙控玩具,鐘表晶振,耐環境的特性在-40到85度的環境運行,
LFXTAL050632,IQD英國晶振,四腳陶瓷貼片,6pF
| 原廠編碼 | LFXTAL050632 |
| 頻率 | 32.768KHz |
| 廠家 | IQD晶振 |
| 型號 | 85SMX |
| 頻率偏差 | ±10ppm |
| 負載電容 | 6pF |
| 工作溫度 | -40°C至85°C |
| 尺寸 | 8.7*3.8mm |
LFXTAL050632,IQD英國晶振,四腳陶瓷貼片,6pF
| 編碼 | 品牌 | 型號 | 頻率 | 頻率偏差 | 負載電容 |
| LFXTAL002997BULK | IQD 晶振 | WATCH | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL002996BULK | IQD 晶振 | WATCH | 32.768 kHz | ±15ppm | 12.5pF |
| LFXTAL025159REEL | IQD 晶振 | CFPX-56 | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL003181REEL | IQD 晶振 | HC49/4HSMX | 20 MHz | ±30ppm | 16pF |
| LFXTAL003166REEL | IQD 晶振 | HC49/4HSMX | 10 MHz | ±30ppm | 16pF |
| LFXTAL029914REEL | IQD 晶振 | HC49/4HSMX | 8 MHz | ±30ppm | 16pF |
| LFXTAL003151REEL | IQD 晶振 | HC49/4HSMX | 8 MHz | ±30ppm | 16pF |
| LFXTAL026380REEL | IQD 晶振 | 12SMX-B | 8 MHz | ±30ppm | 16pF |
| LFXTAL055663BULK | IQD 晶振 | CFPX-104 | 8 MHz | ±20ppm | 18pF |
| LFXTAL003033BULK | IQD 晶振 | HC49 | 1.8432 MHz | ±20ppm | 30pF |
| LFXTAL020423REEL | IQD 晶振 | HC49/4HSMX | 8 MHz | ±30ppm | 18pF |
| LFXTAL024940REEL | IQD 晶振 | HC49/4HSMX | 4 MHz | ±30ppm | 18pF |
| LFXTAL026900REEL | IQD 晶振 | HC49/4HSMX | 6 MHz | ±20ppm | 16pF |
| LFXTAL030798REEL | IQD 晶振 | HC49/4HSMX | 3.6864 MHz | ±30ppm | 16pF |
| LFXTAL082071RL3K | IQD 晶振 | CFPX-180 | 16 MHz | ±10ppm | 8pF |
| LFXTAL082069RL3K | IQD 晶振 | CFPX-180 | 12 MHz | ±10ppm | 8pF |
| LFXTAL058637RL3K | IQD 晶振 | CFPX-180 | 25 MHz | ±30ppm | 12pF |
| LFXTAL059627REEL | IQD 晶振 | IQXC-42 | 38.4 MHz | ±15ppm | 10pF |
| LFXTAL082135CUTT | IQD 晶振 | IQXC-42 | 48 MHz | ±10ppm | 8pF |
| LFXTAL063334REEL | IQD 晶振 | CFPX-218 | 25 MHz | ±20ppm | 10pF |
| LFXTAL055474REEL | IQD 晶振 | CFPX-180 | 25 MHz | ±50ppm | 16pF |
| LFXTAL059648REEL | IQD 晶振 | CFPX-180 | 40 MHz | ±20ppm | 18pF |
