頻率：12MHz
尺寸：2.5*2.0mm
FC2BAEBDI12.0-T1,福克斯進口石英晶振,高頻率晶振,高溫晶振,貼片型晶振,12MHz高頻晶振,石英材質金屬諧振器,計時產品晶振,汽車空調晶振,耐低溫晶振,石英無源晶振,飛機晶振,抗抖動晶振,兒童電話手表晶振,加熱器晶振,軍事設備晶振,航空晶振,智能攝像頭晶振,掃地機器人晶振,智能家具晶振,
FC2BAEBDI12.0-T1,福克斯進口石英晶振,高頻率晶振,高溫晶振
| 原廠編碼 | FC2BAEBDI12.0-T1 |
| 頻率 | 12MHz |
| 廠家 | FOX晶振 |
| 型號 | FC2BA |
| 頻率偏差 | ±50ppm |
| 負載電容 | 10pF |
| 工作溫度 | -40°C至125°C |

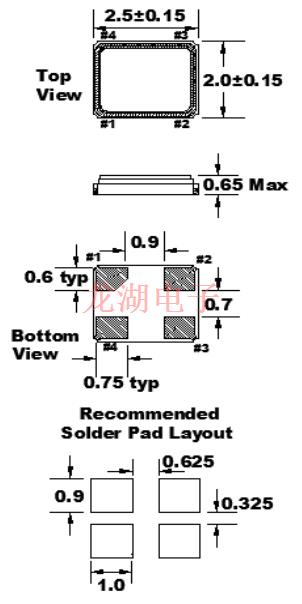

| 尺寸 | 2.5*2.0mm |
FC2BAEBDI12.0-T1,福克斯進口石英晶振,高頻率晶振,高溫晶振
| 編碼 | 品牌 | 型號 | 頻率 | 頻率偏差 | 頻率容差 | 負載電容 |
| FC2BACBEI16.0-T1 | Fox crystal | FC2BA | 16 MHz | ±50ppm | ±30ppm | 10 pF |
| FC2BACBEI16.0-T3 | Fox crystal | FC2BA | 16 MHz | ±50ppm | ±30ppm | 10 pF |
| FC2BAEBDI12.0-T1 | Fox crystal | FC2BA | 12 MHz | ±50ppm | ±20ppm | 8 pF |
| FC2BAEBDI16.0-T1 | Fox crystal | FC2BA | 16 MHz | ±50ppm | ±20ppm | 8 pF |
| FC2BAEBDI20.0-T1 | Fox crystal | FC2BA | 20 MHz | ±50ppm | ±20ppm | 8 pF |
| FC2BAEBDI24.0-T1 | Fox crystal | FC2BA | 24 MHz | ±50ppm | ±20ppm | 8 pF |
| FC2BAEBDI25.0-T1 | Fox crystal | FC2BA | 25 MHz | ±50ppm | ±20ppm | 8 pF |
| FC2BAEBDI40.0-T1 | Fox crystal | FC2BA | 40 MHz | ±50ppm | ±20ppm | 8 pF |
| FC2BAEBEI12.0-T1 | Fox crystal | FC2BA | 12 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI16.0-T1 | Fox crystal | FC2BA | 16 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI20.0-T1 | Fox crystal | FC2BA | 20 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI24.0-T1 | Fox crystal | FC2BA | 24 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI25.0-T1 | Fox crystal | FC2BA | 25 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI40.0-T1 | Fox crystal | FC2BA | 40 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBGI25.0-T1 | Fox crystal | FC2BA | 25 MHz | ±50ppm | ±20ppm | 12 pF |
