頻率：133MHZ
尺寸：5.0x3.2mm
AXTAL時鐘振蕩器,AXE5032P-50-25-0C-133.000MHz,5032mm,AXE5032P系列,HCMOS,德國有源晶振,四腳有源晶振,5032mm有源振蕩器,有源晶體振蕩器,SPXO晶振,可編程振蕩器,HCMOS輸出晶振,SMD振蕩器,尺寸5.0x3.2mm,頻率133MHZ,輸出HCMOS,低功耗晶振,低電壓晶振,高品質晶振,測試設備晶振,多媒體設備晶振,以太網晶振,無線應用晶振.
AXTAL時鐘振蕩器,AXE5032P-50-25-0C-133.000MHz,5032mm,AXE5032P系列,HCMOS特點:
5x3.2毫米封裝的可編程時鐘晶體振蕩器
支持輸出HCMOS
低電壓功耗

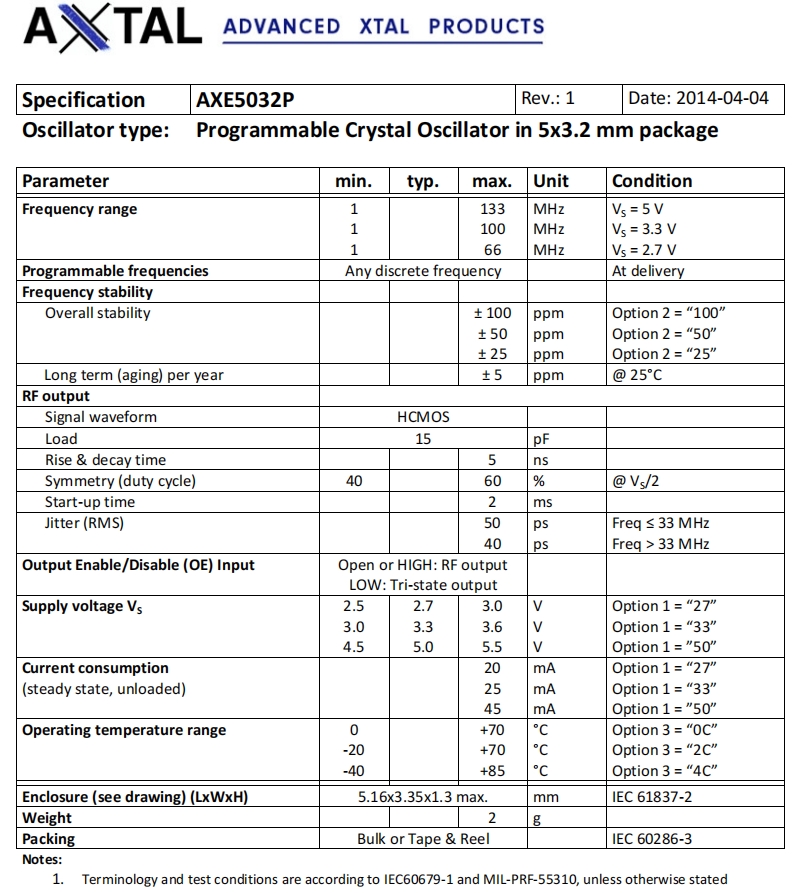

AXTAL時鐘振蕩器,AXE5032P-50-25-0C-133.000MHz,5032mm,AXE5032P系列,HCMOS 參數表
| Parameter | min. | typ. | max. | Unit | Condition | ||||||||||||||
| Frequency range |
1 1 1 |
133 100 66 |
MHz MHz MHz |
VS = 5 V VS = 3.3 V VS = 2.7 V |
|||||||||||||||
| Programmable frequencies | Any discrete frequency | At delivery | |||||||||||||||||
| Frequency stability | |||||||||||||||||||
| Overall stability |
± 100 ± 50 ± 25 |
ppm ppm ppm |
Option 2 = “100” Option 2 = “50” Option 2 = “25” |
||||||||||||||||
| Long term (aging) per year | ± 5 | ppm | @ 25°C | ||||||||||||||||
| RF output | |||||||||||||||||||
| Signal waveform | HCMOS | ||||||||||||||||||
| Load | 15 | pF | |||||||||||||||||
| Rise & decay time | 5 | ns | |||||||||||||||||
| Symmetry (duty cycle) | 40 | 60 | % | @ VS/2 | |||||||||||||||
| Start-up time | 2 | ms | |||||||||||||||||
| Jitter (RMS) |
50 40 |
ps ps |
Freq ≤ 33 MHz Freq > 33 MHz |
||||||||||||||||
| Output Enable/Disable (OE) Input |
Open or HIGH: RF output LOW: Tri-state output |
||||||||||||||||||
| Supply voltage VS |
2.5 3.0 4.5 |
2.7 3.3 5.0 |
3.0 3.6 5.5 |
V V V |
Option 1 = “27” Option 1 = “33” Option 1 = ”50” |
||||||||||||||
|
Current consumption (steady state, unloaded) |
20 25 45 |
mA mA mA |
Option 1 = “27” Option 1 = “33” Option 1 = ”50” |
||||||||||||||||
| Operating temperature range |
0 -20 -40 |
+70 +70 +85 |
°C °C °C |
Option 3 = “0C” Option 3 = “2C” Option 3 = “4C” |
|||||||||||||||
| Enclosure (see drawing) (LxWxH) | 5.16x3.35x1.3 max. | mm | IEC 61837-2 | ||||||||||||||||
| Weight | 2 | g | |||||||||||||||||
| Packing | Bulk or Tape & Reel | IEC 60286-3 | |||||||||||||||||

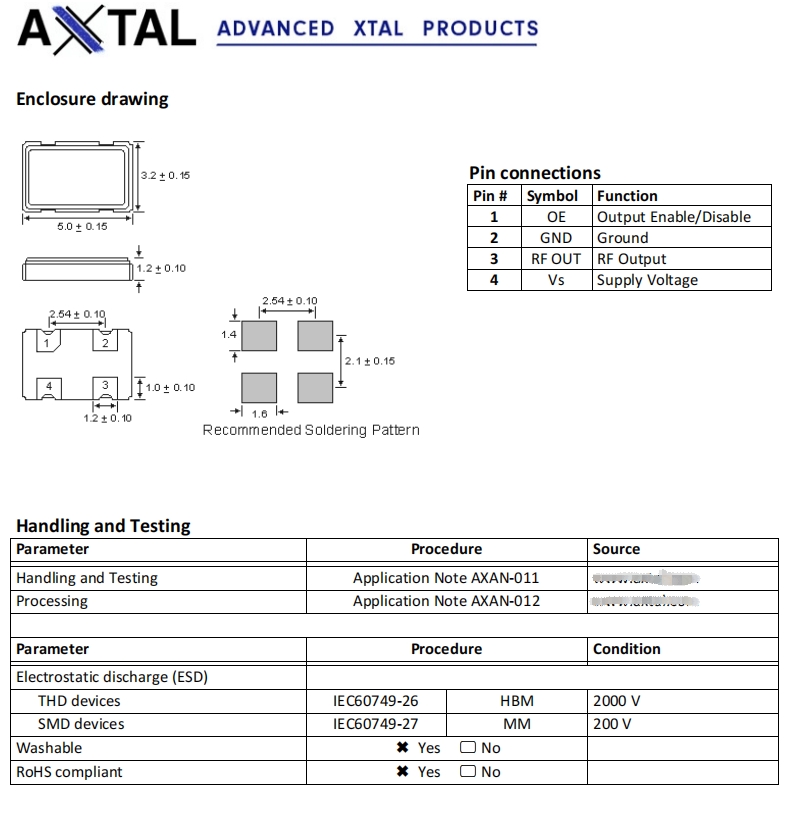

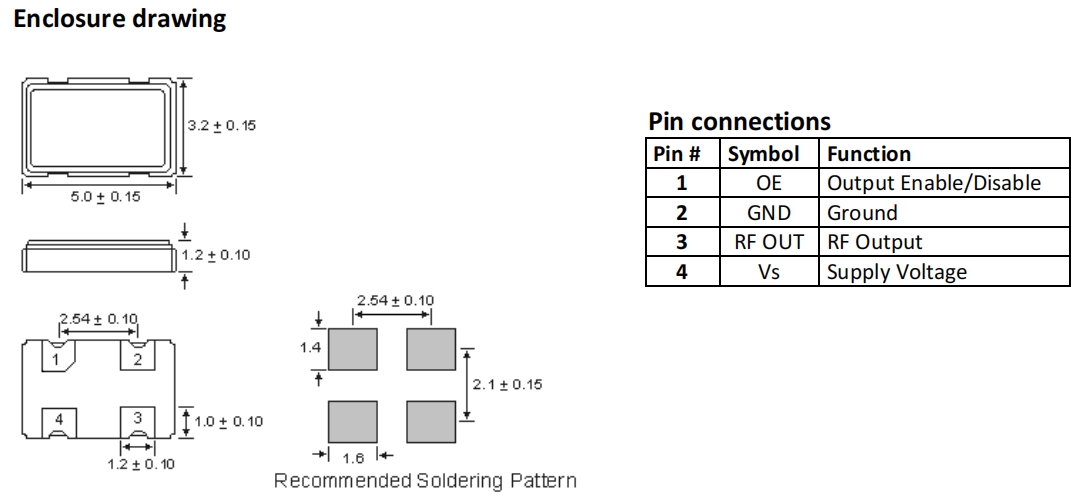

AXTAL時鐘振蕩器,AXE5032P-50-25-0C-133.000MHz,5032mm,AXE5032P系列,HCMOS 尺寸圖
