C5S-20.000-20-3050-X-R,Aker輕薄型晶體,C5S汽車音響晶振

頻率：20MHZ

尺寸：5.0x3.2mm

C5S-20.000-20-3050-X-R,Aker輕薄型晶體,C5S汽車音響晶振，尺寸5.0x3.2mm，頻率20MHZ，Aker小尺寸晶振，安基無源晶振，石英振動子，石英晶體諧振器，貼片石英晶振，四腳貼片晶振，無源晶振，無源石英晶體，SMD晶振，輕薄型晶振，5032mm貼片晶振，SMD無源晶體，環保晶振，20MHZ貼片晶振，高性能晶振，低損耗晶振，低功耗晶振，低成本晶振，低耗能晶振，汽車音響晶振，娛樂設備晶振，微處理器晶振，游戲設備晶振，便攜式設備晶振，可視化電話晶振，儀器儀表晶振，數字視頻晶振，物聯網晶振，移動通信晶振，具有低功耗高性能的特點.Quartz crystal產品常常用于汽車音響，娛樂設備，微處理器，游戲設備，便攜式設備，可視化電話，儀器儀表，數字視頻，物聯網，移動通信等領域。C5S-20.000-20-3050-X-R,Aker輕薄型晶體,C5S汽車音響晶振.
訂購熱線：0755-29952551
QQ咨詢 財富通

Abracon-2

LH-1

C5S-20.000-20-3050-X-R,Aker輕薄型晶體,C5S汽車音響晶振，尺寸5.0x3.2mm，頻率20MHZ，Aker小尺寸晶振，安基無源晶振，石英振動子，石英晶體諧振器，貼片石英晶振，四腳貼片晶振，無源晶振，無源石英晶體，SMD晶振，輕薄型晶振，5032mm貼片晶振，SMD無源晶體，環保晶振，20MHZ貼片晶振，高性能晶振，低損耗晶振，低功耗晶振，低成本晶振，低耗能晶振，汽車音響晶振，娛樂設備晶振，微處理器晶振，游戲設備晶振，便攜式設備晶振，可視化電話晶振，儀器儀表晶振，數字視頻晶振，物聯網晶振，移動通信晶振，具有低功耗高性能的特點.Quartz crystal產品常常用于汽車音響，娛樂設備，微處理器，游戲設備，便攜式設備，可視化電話，儀器儀表，數字視頻，物聯網，移動通信等領域。C5S-20.000-20-3050-X-R,Aker輕薄型晶體,C5S汽車音響晶振.

LH-2

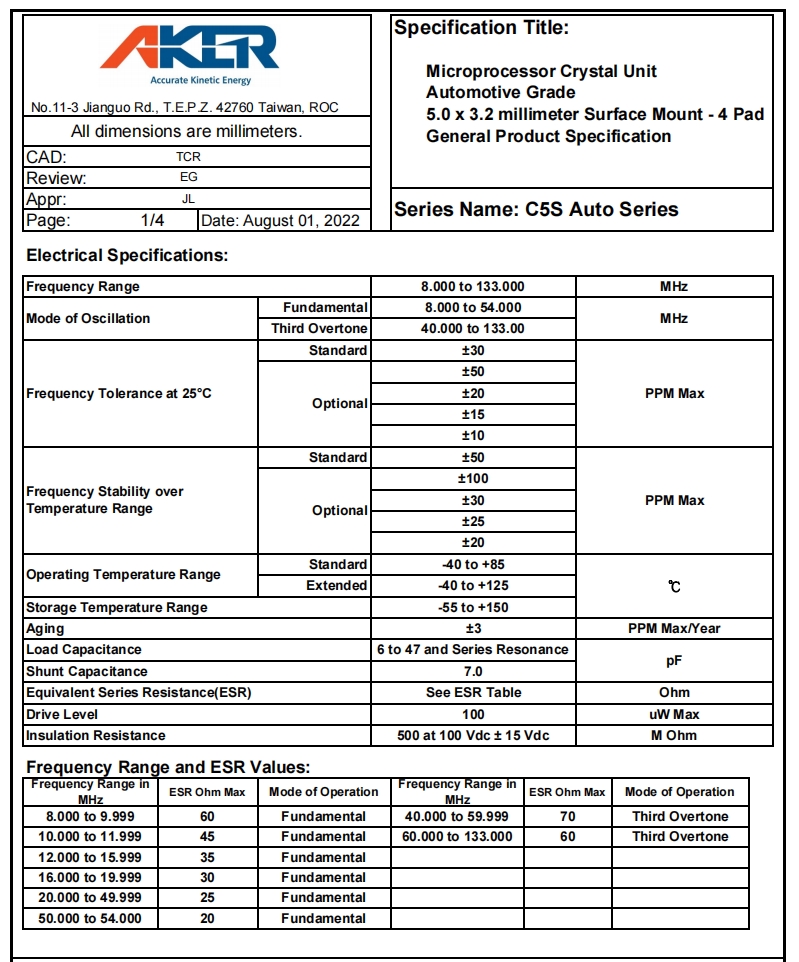

C5S-20.000-20-3050-X-R,Aker輕薄型晶體,C5S汽車音響晶振      參數表

Frequency Range 20.000 MHz
Mode of Oscillation Fundamental 8.000 to 54.000 MHz
Third Overtone 40.000 to 133.00
Frequency Tolerance at 25°C Standard ±30 PPM Max
Optional ±50
±20
±15
±10
Frequency Stability over
Temperature Range 		Standard ±50 PPM Max
Optional ±100
±30
±25
±20
Operating Temperature Range Standard -40 to +85 ℃
Extended -40 to +125
Storage Temperature Range -55 to +150
Aging ±3 PPM Max/Year
Load Capacitance 6 to 47 and Series Resonance pF
Shunt Capacitance 7.0
Equivalent Series Resistance(ESR) See ESR Table Ohm
Drive Level 100 uW Max
Insulation Resistance 500 at 100 Vdc ± 15 Vdc M Ohm
LH-3

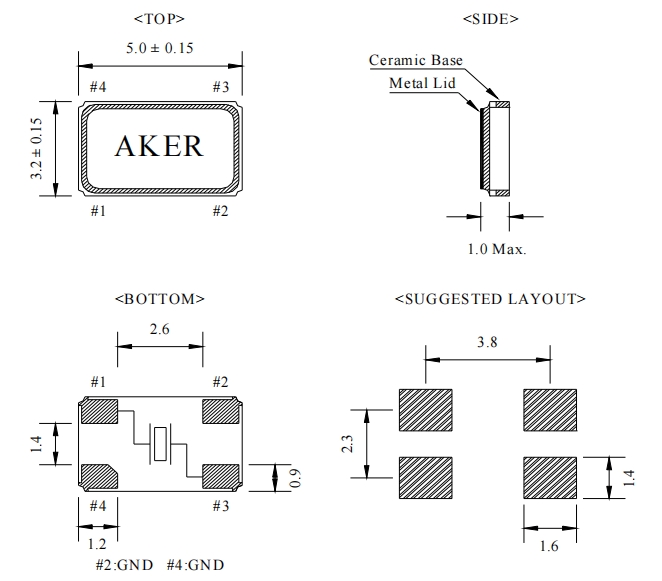

C5S-20.000-20-3050-X-R,Aker輕薄型晶體,C5S汽車音響晶振        尺寸圖

C5S

C5S-20.000-20-3050-X-R,Aker輕薄型晶體,C5S汽車音響晶振

貼片晶振產品特點:

微處理器晶體單元

汽車等級

5.0x3.2毫米表面安裝-4個襯墊

通用產品規范

C5S 1

Mfr Part # Mfr Description Series Frequency Frequency Stability
C3E-8.000-8-1015-R Aker Technology Corp CRYSTAL 8MHZ 8PF SMD C3E 8 MHz ±10ppm
C3E-12.000-8-2050-X1-R Aker Technology Corp CRYSTAL 12MHZ 8PF SMD AEC-Q200 C3E X1 12 MHz ±50ppm
C3E-16.000-10-3050-X1-R Aker Technology Corp CRYSTAL 16MHZ 10PF SMD AEC-Q200 C3E X1 16 MHz ±50ppm
C16-32.000-8-1515-X-R Aker Technology Corp CRYSTAL 32MHZ 8PF SMD C16 32 MHz ±15ppm
C3E-20.000-8-3050-X1-R Aker Technology Corp CRYSTAL 20MHZ 8PF SMD AEC-Q200 C3E X1 20 MHz ±50ppm
C2E-12.000-18-1020-X-R Aker Technology Corp CRYSTAL12MHZ 18PF SMD C2E 12 MHz ±20ppm
C5S-12.000-18-1020-R Aker Technology Corp CRYSTAL 12.0000MHZ 18PF SMD C5S 12 MHz ±20ppm
C3E-8.000-18-1020-R Aker Technology Corp CRYSTAL 8.0000MHZ 18PF SMD C3E 8 MHz ±20ppm
C3E-8.000-12-1020-M Aker Technology Corp CRYSTAL 8MHZ 12PF SMD C3E 8 MHz ±10ppm
C2E-12.000-8-2050-X1-R Aker Technology Corp CRYSTAL 12MHZ 8PF SMD AEC-Q200 C2E X1 12 MHz ±50ppm
C3E-16.000-10-2050-X1-R Aker Technology Corp CRYSTAL 10MHZ 10PF SMD AEC-Q200 C3E X1 10 MHz ±50ppm
C3E-30.000-8-2050-X1-R Aker Technology Corp CRYSTAL 30MHZ 8PF SMD AEC-Q200 C3E X1 30 MHz ±50ppm
C7S-12.000-12-3030-X-R Aker Technology Corp CRYSTAL 12MHZ 12PF SMD C7S 12 MHz ±30ppm
C7S-8.000-18-1020-R Aker Technology Corp CRYSTAL 8.0000MHZ 18PF SMD C7S 8 MHz ±20ppm
C7S-8.000-18-1030-X-R Aker Technology Corp CRYSTAL 8MHZ 18PF SMD C7S 8 MHz ±30ppm
CA4-16.000-18-3050-R Aker Technology Corp CRYSTAL 16MHZ 18PF SMD CA4 16 MHz ±50ppm
CA4-8.000-16-3050-R Aker Technology Corp CRYSTAL 8.000MHZ 16PF SMD CA4 8 MHz ±50ppm
C3E-8.000-10-1020-M Aker Technology Corp CRYSTAL 8MHZ 10PF SMD C3E 8 MHz ±20ppm
C16-96.000-8-1520-X2-R Aker Technology Corp CRYSTAL 96MHZ 8PF SMD - 96 MHz ±15ppm
C1E-76.800-10-1012-X-M Aker Technology Corp CRYSTAL 76.8MHZ 10PF SMD C1E 76.8 MHz ±10ppm
C1E-80.000-10-1015-X-M Aker Technology Corp CRYSTAL 80MHZ 10PF SMD C1E 80 MHz ±10ppm
C1E-76.800-8-1012-X-M Aker Technology Corp CRYSTAL 76.8MHZ 8PF SMD C1E 46.8 MHz ±10ppm
C1E-80.000-8-1015-X-M Aker Technology Corp CRYSTAL 80MHZ8PF SMD C1E 80 MHz ±10ppm
C3E-24.576-12-3030-X-R Aker Technology Corp CRYSTAL 24.5760MHZ 12PF SMD C3E 24.576 MHz ±30ppm
C3E-30.000-12-1020-X-R Aker Technology Corp CRYSTAL 30MHZ 12PF SMD C3E 30 MHz ±10ppm
C3E-12.000-12-1015-R Aker Technology Corp CRYSTAL 12.0000MHZ 12PF SMD C3E 12 MHz ±15ppm
C3E-25.000-8-1015-X-R Aker Technology Corp CRYSTAL 25.0000MHZ 8PF SMD C3E 25 MHz ±15ppm
C3E-26.000-10-1015-X-R3 Aker Technology Corp CRYSTAL 26.0000MHZ 10PF SMD C3E 26 MHz ±15ppm
C16-26.000-8-1010-R Aker Technology Corp CRYSTAL 26MHZ 8PF SMD C16 26 MHz ±10ppm
C3E-16.000-8-2050-X1-R Aker Technology Corp CRYSTAL 16MHZ 8PF SMD AEC-Q200 C3E X1 16 MHz ±50ppm
C3E-8.000-12-1020-R Aker Technology Corp CRYSTAL 8.0000MHZ 12PF SMD C3E 8 MHz ±20ppm
C2E-12.000-10-2050-X1-R Aker Technology Corp CRYSTAL 12MHZ 10PF SMD AEC-Q200 C2E X1 12 MHz ±50ppm
C1E-96.000-8-1216-X2-R Aker Technology Corp CRYSTAL 96MHZ 8PF SMD C1E X2 96 MHz ±16ppm
C3E-12.000-12-3030-X-R Aker Technology Corp CRYSTAL 12.0000MHZ 12PF SMD C3E 12 MHz ±30ppm
C3E-27.120-12-1010-R Aker Technology Corp CRYSTAL 27.1200MHZ 12PF SMD C3E 27.12 MHz ±10ppm
C3E-24.576-12-1010-R Aker Technology Corp CRYSTAL 24.5760MHZ 12PF SMD C3E 24.576 MHz ±10ppm
C3E-16.000-12-1015-R Aker Technology Corp CRYSTAL 16.0000MHZ 12PF SMD C3E 16 MHz ±15ppm
C3E-13.560-12-1530-X-R Aker Technology Corp CRYSTAL 13.5600MHZ 12PF SMD C3E 13.56 MHz ±30ppm
C2E-16.000-10-1010-R Aker Technology Corp CRYSTAL 16.0000MHZ 10PF SMD C2E 16 MHz ±10ppm
C1E-24.000-10-1015-M Aker Technology Corp CRYSTAL 24.0000MHZ 10PF SMD C1E 24 MHz ±15ppm
C2E-25.000-10-3030-X-M Aker Technology Corp CRYSTAL 25.0000MHZ 10PF SMD C2E 25 MHz ±30ppm
C2E-48.000-10-1020-X-R Aker Technology Corp CRYSTAL 48MHZ SMD FOR WIFI C2E 48 MHz ±20ppm
C3E-20.000-10-3050-X1-R Aker Technology Corp CRYSTAL 20MHZ 10PF SMD AEC-Q200 C3E X1 20 MHz ±50ppm
C1E-96.000-9.9-1216-X2-R Aker Technology Corp CRYSTAL 96MHZ 9.9PF SMD晶振 C1E 96 MHz ±16ppm
C1E-52.000-8-1012-X-M Aker Technology Corp CRYSTAL 52MHZ 10PF SMD C1E 52 MHz ±10ppm
C1E-52.000-10-1012-X-M Aker Technology Corp CRYSTAL 52MHZ 8PF SMD C1E 52 MHz ±10ppm
C3E-27.120-12-1020-X-R Aker Technology Corp CRYSTAL 27.120MHZ 12PF SMD C3E 27.12 MHz ±10ppm
C3E-16.000-9-1010-R Aker Technology Corp CRYSTAL 16MHZ 9PF SMD C3E 16 MHz ±10ppm
C5S-24.000-20-3030-X-R Aker Technology Corp CRYSTAL 24MHZ 20PF SMD C5S 24 MHz ±30ppm
C5S-12.000-16-5050-X-R Aker Technology Corp CRYSTAL 12MHZ 16PF SMD C5S 12 MHz ±50ppm
C5S-20.000-20-3050-X-R Aker Technology Corp CRYSTAL 20MHZ 20PF SMD C5S 20 MHz ±30ppm
C5S-12.000-16-3030-X-R Aker Technology USA CRYSTAL 12.0000MHZ 16PF SMD C5S 12 MHz ±30ppm
C5S-8.000-12-2020-X-R Aker Technology Corp CRYSTAL 8MHZ 12PF SMD C5S 8 MHz ±20ppm
C6S-16.000-12-5050-X-R Aker Technology Corp CRYSTAL 16MHZ 12PF SMD C6S 16 MHz ±50ppm
C2E-20.000-10-2050-X1-R Aker Technology Corp CRYSTAL 20MHZ 10PF SMD AEC-Q200 C2E X1 20 MHz ±50ppm
C5S-8.000-18-3030-X-R Aker Technology USA CRYSTAL 8.0000MHZ 18PF SMD C5S 8 MHz ±30ppm
C5S-8.000-16-3030-X-R Aker Technology USA CRYSTAL 8.0000MHZ 16PF SMD C5S 8 MHz ±30ppm
C3E-16.000-8-50100-X1-R Aker Technology Corp CRYSTAL 16.0000MHZ 8PF SMD C3E 16 MHz ±100ppm
C1E-32.000-8-1015-X-R Aker Technology Corp CRYSTAL 32.0000MHZ 8PF SMD C1E 32 MHz ±15ppm
C3E-16.000-8-50150-A-X3-R Aker Technology Corp UWB CRYSTAL, 3225, 16.000MHZ, 8P C3E Auto 16 MHz ±150ppm
C1E-40.000-8-1030-A-X2-R Aker Technology Corp UWB CRYSTAL, 2016, 40.000MHZ, 8P C1E Auto 40 MHz ±30ppm
C1E-40.000-8-1550-X1-R Aker Technology Corp UWB CRYSTAL, 2016, 40.0000MHZ, 8 C1E 40 MHz ±50ppm
C1E-16.000-10-1520-X-R Aker Technology Corp UWB CRYSTAL, 2016, 16.000MHZ, 10 C1E 16 MHz ±20ppm
C3E-8.000-8-10150-A-X3-R Aker Technology Corp UWB CRYSTAL, 3225, 8.000MHZ, 8PF C3E Auto 8 MHz ±150ppm
C1E-55.200-8-1035-A-X2-R Aker Technology Corp UWB CRYSTAL, 2016, 55.200MHZ, 8P C1E Auto 55.2 MHz ±35ppm
C16-40.000-8-1020-A-X-R Aker Technology Corp UWB CRYSTAL, 1612, 40.0000MHZ, 8 C16 Auto 40 MHz ±20ppm
C1E-48.000-8-1020-X2-M Aker Technology Corp CRYSTAL 48MHZ 8PF SMD C1E 48 MHz ±10ppm
C1E-48.000-10-1020-X2-M Aker Technology Corp CRYSTAL 48MHZ 10PF C1E 48 MHz ±10ppm
