LH-1

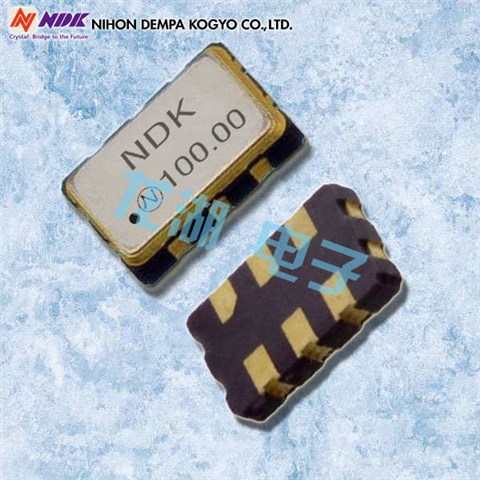

NZ2520SEB單反相機晶振,NZ2520SEB-32MHZ-NSC5284B,日本電波SPXO晶振，尺寸2.5x2.0mm，頻率32MHZ，輸出邏輯CMOS，日本進口晶振，NDK有源晶振，有源晶體振蕩器，石英有源晶振，有源晶體振蕩器，CMOS輸出晶振，2520mm有源晶振，SPXO有源振蕩器，六腳有源晶振，高精度有源晶振，低抖動有源晶振，低電壓有源晶振，低相位有源晶振，低相噪有源振蕩器，汽車導航有源晶振，汽車音響有源晶振，攝像頭有源晶振，單反相機有源晶振，數碼相機有源晶振，儀器儀表有源晶振，測試設備有源晶振，娛樂設備有源晶振，具有高精度低電壓的特點。

有源石英晶振產品比較常用于汽車導航、汽車音響、攝像頭，還廣泛適用于數碼相機、單反相機，測試設備，儀器儀表等應用。NZ2520SEB單反相機晶振,NZ2520SEB-32MHZ-NSC5284B,日本電波SPXO晶振.

LH-2

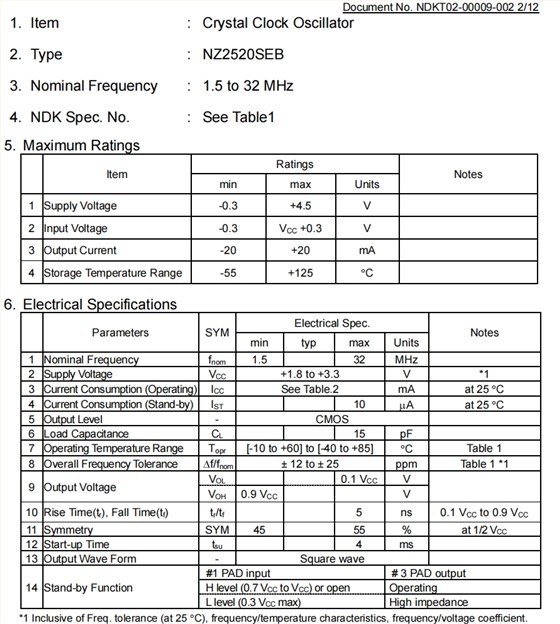

NZ2520SEB單反相機晶振,NZ2520SEB-32MHZ-NSC5284B,日本電波SPXO晶振參數表

Item

Ratings

Notes

min

max

Units

Supply Voltage

-0.3

+4.5

Input Voltage

-0.3

VCC+0.3

Output Current

-20

+20

Storage Temperature Range

-55

+125

。C

Parameters

SYM

Electrical Spec.

Notes

min

typ

max

Units

Nominal Frequency

fnom

MHz

Supply Voltage

VCC

+1.8 to +3.3

Current Consumption (Operating)

ICC

See Table.2

at 25。C

Current Consumption (Stand-by)

IST

μA

at 25。C

Output Level

CMOS

Load Capacitance

Operating Temperature Range

Topr

[- 10 to +60] to [-40 to +85]

。C

Table 1

Overall Frequency Tolerance

Δf/fnom

± 12 to ± 25

ppm

Table 1 *1

Output Voltage

VOL

0.1 VCC

VOH

0.9 VCC

Rise Time(tr), Fall Time(tf)

tr/tf

0.1 VCCto 0.9 VCC

Symmetry

SYM

at 1/2 VCC

Start-up Time

tsu

Output Wave Form

Square wave

Stand-by Function

#1 PAD input

# 3 PAD output

H level (0.7 VCCto VCC) or open

Operating

L level (0.3 VCCmax)

High impedance

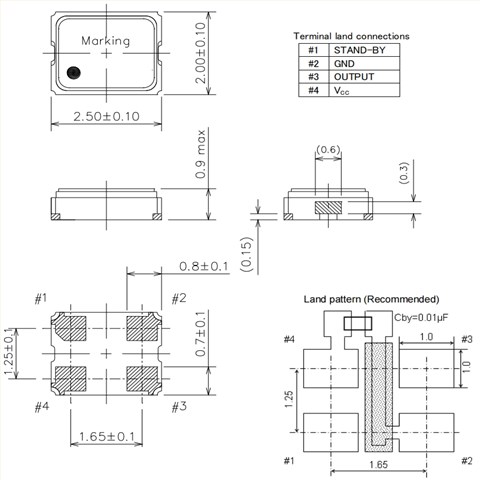

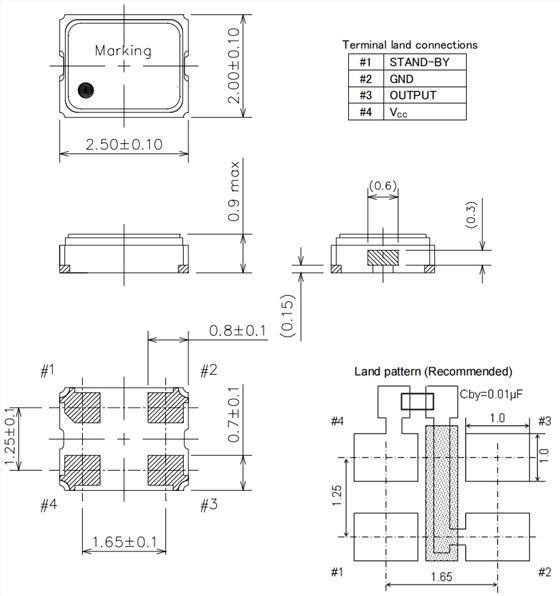

NZ2520SEB單反相機晶振,NZ2520SEB-32MHZ-NSC5284B,日本電波SPXO晶振 尺寸圖

NZ2520SEB單反相機晶振,NZ2520SEB-32MHZ-NSC5284B,日本電波SPXO晶振

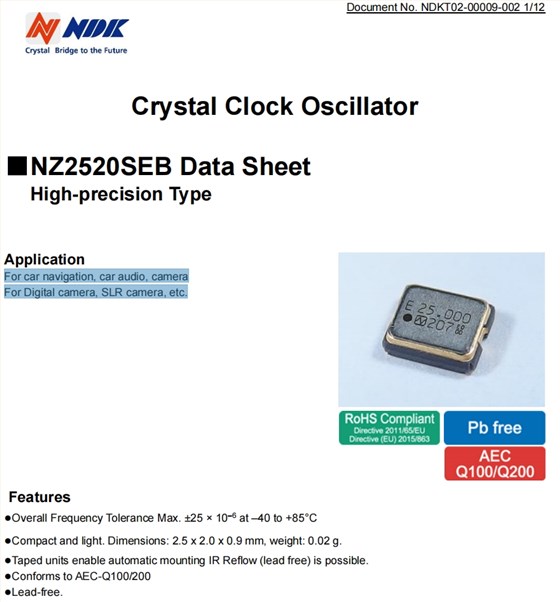

OSC晶振產品特點:

在–40至+85°C時，總體頻率公差最大值為±25×10–6

小巧輕便。尺寸：2.5 x 2.0 x 0.9毫米，重量：0.02克。

磁帶裝置可實現自動安裝IR回流（無鉛）。

符合AEC-Q100/200

無鉛。

Model	Nominal frequency[MHz]	Specification number	晶振廠家	Package size(LxW)[mm]	Output specification	Operating temperature rang[℃]
NZ2520SEB	25MHZ	NSC5283D	NDK晶振	2.5x2.0	CMOS	-20~+70
NZ2520SEB	26MHZ	NSC5283D	NDK晶振	2.5x2.0	CMOS	-20~+70
NZ2520SEB	32MHZ	NSC5283D	NDK晶振	2.5x2.0	CMOS	-20~+70
NZ2520SEB	8MHZ	NSC5284A	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	12MHZ	NSC5284A	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	12.288MHZ	NSC5284A	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	15.625MHZ	NSC5284A	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	16MHZ	NSC5284A	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	24MHZ	NSC5284A	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	25MHZ	NSC5284A	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	26MHZ	NSC5284A	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	32MHZ	NSC5284A	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	8MHZ	NSC5284B	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	12MHZ	NSC5284B	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	12.288MHZ	NSC5284B	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	15.625MHZ	NSC5284B	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	16MHZ	NSC5284B	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	24MHZ	NSC5284B	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	25MHZ	NSC5284B	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	26MHZ	NSC5284B	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	32MHZ	NSC5284B	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	8MHZ	NSC5284C	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	12MHZ	NSC5284C	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	12.288MHZ	NSC5284C	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	15.625MHZ	NSC5284C	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	16MHZ	NSC5284C	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	24MHZ	NSC5284C	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	25MHZ	NSC5284C	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	26MHZ	NSC5284C	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	32MHZ	NSC5284C	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	8MHZ	NSC5284D	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	12MHZ	NSC5284D	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	12.288MHZ	NSC5284D	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	15.625MHZ	NSC5284D	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	16MHZ	NSC5284D	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	24MHZ	NSC5284D	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	25MHZ	NSC5284D	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	26MHZ	NSC5284D	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SEB	32MHZ	NSC5284D	NDK晶振	2.5x2.0	CMOS	-10~+60
NZ2520SDA	22.5792MHZ	NSC5083A	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	24MHZ	NSC5083A	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	24.576MHZ	NSC5083A	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	25MHZ	NSC5083A	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	27MHZ	NSC5083A	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	45.1584MHZ	NSC5083A	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	48MHZ	NSC5083A	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	49.152MHZ	NSC5083A	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	50MHZ	NSC5083A	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	22.5792MHZ	NSC5083B	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	24MHZ	NSC5083B	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	24.576MHZ	NSC5083B	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	25MHZ	NSC5083B	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	27MHZ	NSC5083B	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	45.1584MHZ	NSC5083B	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	48MHZ	NSC5083B	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	49.152MHZ	NSC5083B	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	50MHZ	NSC5083B	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	22.5792MHZ	NSC5083C	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	24MHZ	NSC5083C	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	24.576MHZ	NSC5083C	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	25MHZ	NSC5083C	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	27MHZ	NSC5083C	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	45.1584MHZ	NSC5083C	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	48MHZ	NSC5083C	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	49.152MHZ	NSC5083C	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	50MHZ	NSC5083C	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SDA	22.5792MHZ	NSC5083D	NDK晶振	2.5x2.0	CMOS	-40~+85
