為何這款有源振蕩器更適合存儲區域網絡?CB3-3C-24M0000,作為第一家將用于電子產品的石英晶體商業化的公司（1932 年），CTS 在頻率控制產品中提供可靠性、質量和出色的穩定性、低抖動和低相位噪聲性能方面有著悠久的歷史。我們在高性能抖動衰減器、頻率轉換器、高穩定性和低功耗 OCXO以及高頻參考時鐘方面進行了創新。我們提供范圍廣泛、多樣化的產品組合，石英晶振包括最小尺寸的標準行業外形尺寸，以及來自我們工程產品平臺的定制解決方案，以滿足您的特定需求。

CTS頻率控制產品為無線基礎設施、有線核心網絡、同步以太網、光網絡、航空電子、軍事、石油和天然氣勘探以及測試和測量等應用提供定時和同步解決方案。

為何這款有源振蕩器更適合存儲區域網絡?CB3-3C-24M0000,CTS是高性能晶體振蕩器產品設計和制造的行業領導者。我們提供當今可用的最高頻率、最低抖動和最低功耗的有源晶振產品。從專為便攜式應用 (120mW) 設計的 VFOV400系列OCXO到專為通信系統 (1.8GHz) 設計的VFTX110系列TCXO，我們?yōu)槟羁量痰膽锰峁┚_的定時解決方案。我們的工程師將與您一起為您的設計要求定制獨特的解決方案。

Manufacturer Part Number原廠代碼	Manufacturer品牌	Series型號	Frequency 頻率	Frequency Stability頻率穩定度	Size / Dimension 尺寸
CB3-3C-1M8432	CTS-Frequency Controls	CB3	1.8432MHz	±50ppm	0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3C-24M0000	CTS-Frequency Controls	CB3	24MHz	±50ppm	0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3C-24M0000	CTS-Frequency Controls	CB3	24MHz	±50ppm	0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3C-24M0000	CTS-Frequency Controls	CB3	24MHz	±50ppm	0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3I-25M0000	CTS-Frequency Controls	CB3	25MHz	±50ppm	0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3I-25M0000	CTS-Frequency Controls	CB3	25MHz	±50ppm	0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3I-25M0000	CTS-Frequency Controls	CB3	25MHz	±50ppm	0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3I-15M3600	CTS-Frequency Controls	CB3	15.36MHz	±50ppm	0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3I-15M3600	CTS-Frequency Controls	CB3	15.36MHz	±50ppm	0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3I-15M3600	CTS-Frequency Controls	CB3	15.36MHz	±50ppm	0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3C-1M5440	CTS-Frequency Controls	CB3	1.544MHz	±50ppm	0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3C-1M5440	CTS-Frequency Controls	CB3	1.544MHz	±50ppm	0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3C-1M5440	CTS-Frequency Controls	CB3	1.544MHz	±50ppm	0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3I-1M8432	CTS-Frequency Controls	CB3	1.8432MHz	±50ppm	0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3I-1M8432	CTS-Frequency Controls	CB3	1.8432MHz	±50ppm	0.276" L x 0.197" W (7.00mm x 5.00mm)

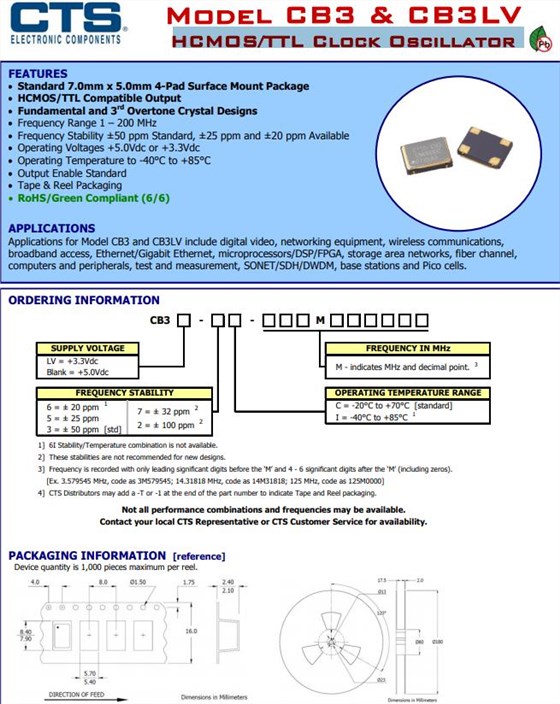

CTS很高興發布這款XO振蕩器CB3-3C-24M0000標準7.0mm x 5.0mm 4-Pad表面安裝包，HCMOS/TTL兼容輸出，基本和第三泛音水晶設計，頻率范圍1 - 200 MHz，頻率穩定性±50 ppm標準，±25 ppm和±20 ppm可用，工作電壓+5.0Vdc或+3.3Vdc，工作溫度-40°C至+85°C，標準輸出，磁帶和卷包裝

應用：CB3和CB3LV的應用包括數字視頻、網絡設備、無線通信、寬帶接入，以太網/千兆以太網，微處理器/DSP/FPGA，存儲區域網絡，光纖通道，計算機和外圍設備，測試和測量，SONET/SDH/DWDM，基站和Pico單元。
As the first company to commercialize quartz crystals for use in electronics (1932), CTS has a long history of providing reliability, quality, and exceptional stability, low jitter and low phase noise performance in frequency control products. We have innovations in high-performance Jitter Attenuators, Frequency Translators, tight-stability and low-power OCXOs, and high frequency reference clocks. We offer a wide-ranging, diverse product portfolio of standard industry form-factors down the smallest sizes, as well as custom solutions from our engineered product platforms to meet your specific needs.

CTS Frequency Control products provide timing and synchronization solutions for applications such as wireless infrastructure, wireline core networking, synchronous Ethernet, optical networking, avionics, military, oil & gas exploration, and test & measurement.

CTS is an industry leader in the design and manufacturing of high performance crystal oscillator products. We offer the highest frequencies, lowest jitter, and lowest power consumption products available today. From our VFOV400 series OCXO’s designed for portable applications (120mW) to our VFTX110 series TCXO designed for communication systems (1.8GHz), we have a precise timing solution for your most demanding applications. Our engineers will work with you to customize a unique solution for your design requirements.
