LFXTAL065455REEL,IQXC-25,IQD伊克德電子,兩腳貼片,SMD晶振,兩腳貼片,石英諧振器,低頻晶振,32.768k貼片,歐美高品質晶振,貼片諧振器,耐環(huán)境晶振,藍牙晶振,耐熱晶振,抗撞擊性在常規(guī)的衰落或運輸過程中的碰撞都不會影響搭配其的性能,即是是85度的環(huán)境依然可以運行,
LFXTAL065455REEL,IQXC-25,IQD伊克德電子,兩腳貼片
| 原廠編碼 | LFXTAL065455REEL |
| 頻率 | 32.768KHz |
| 廠家 | IQD晶振 |
| 型號 | IQXC-25 |
| 頻率偏差 | ±20ppm |
| 負載電容 | 6pF |
| 工作溫度 | -40°C至85°C |

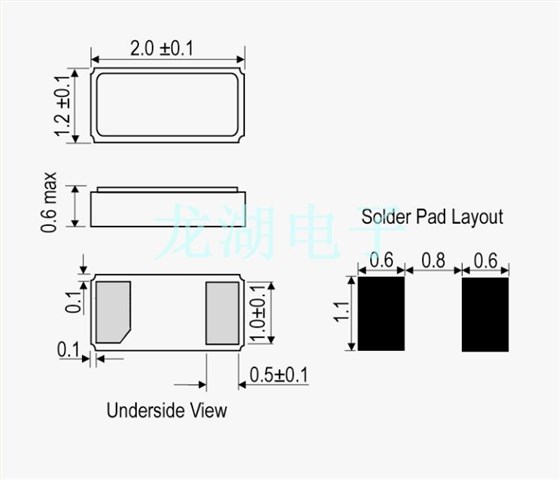

| 尺寸 | 2.0*1.2mm |
LFXTAL065455REEL,IQXC-25,IQD伊克德電子,兩腳貼片
| Mfr Part # | Mfr | Series | Frequency | Frequency Tolerance | Load Capacitance |
| LFXTAL082135CUTT | IQD 進口晶振 | IQXC-42 | 48 MHz | ±10ppm | 8pF |
| LFXTAL063334REEL | IQD 進口晶振 | CFPX-218 | 25 MHz | ±20ppm | 10pF |
| LFXTAL055474REEL | IQD 進口晶振 | CFPX-180 | 25 MHz | ±50ppm | 16pF |
| LFXTAL072352REEL | IQD 進口晶振 | 12SMX AUTO | 8 MHz | ±50ppm | 18pF |
| LFXTAL059461REEL | IQD 進口晶振 | IQXC-25 | 32.768 kHz | ±20ppm | 7pF |
| LFXTAL011164BULK | IQD 進口晶振 | HC49 | 3.072 MHz | ±20ppm | 20pF |
| LFXTAL036356REEL | IQD 進口晶振 | HC49/4HSMX | 12 MHz | ±20ppm | 18pF |
| LFXTAL058149RL3K | IQD 進口晶振 | CFPX-180 | 24 MHz | ±10ppm | 10pF |
| LFXTAL083409RL3K | IQD 進口晶振 | CFPX-180 | 26 MHz | ±10ppm | 12pF |
| LFXTAL078781RL3K | IQD 進口晶振 | CFPX-180 | 16 MHz | ±30ppm | 12pF |
| LFXTAL083407RL3K | IQD 進口晶振 | CFPX-180 | 24 MHz | ±20ppm | 12pF |
| LFXTAL036401REEL | IQD 進口晶振 | CFPX-104 | 12 MHz | ±20ppm | 18pF |
| LFXTAL071266REEL | IQD 進口晶振 | IQXC-42 AUTO | 48 MHz | ±10ppm | 10pF |
| LFXTAL066198REEL | IQD 進口晶振 | IQXC-90 | 32.768 kHz | ±20ppm | 9pF |
| LFXTAL085880 | IQD 進口晶振 | CFPX-180 | 25 MHz | ±20ppm | 8pF |
| LFXTAL085874 | IQD 進口晶振 | CFPX-180 | 20 MHz | ±20ppm | 12pF |
| LFXTAL085878 | IQD 進口晶振 | CFPX-180 | 24 MHz | ±20ppm | 12pF |
| LFXTAL085860 | IQD 進口晶振 | CFPX-180 | 12 MHz | ±20ppm | 12pF |
| LFXTAL085887 | IQD 進口晶振 | CFPX-180 | 32 MHz | ±10ppm | 8pF |
| LFXTAL009709 | IQD 進口晶振 | CFPX-217 | 32.768 kHz | ±20ppm | 7pF |
| LFXTAL085881 | IQD 進口晶振 | CFPX-180 | 25 MHz | ±20ppm | 12pF |
| LFXTAL085871 | IQD 進口晶振 | CFPX-180 | 16 MHz | ±20ppm | 8pF |
| LFXTAL085845 | IQD 進口晶振 | IQXC-42 | 25 MHz | ±10ppm | 8pF |
| LFXTAL085842 | IQD 進口晶振 | IQXC-42 | 16 MHz | ±10ppm | 8pF |
| LFXTAL085857 | IQD 進口晶振 | IQXC-42 | 40 MHz | ±10ppm | 10pF |
| LFXTAL084882 | IQD 進口晶振 | IQXC-217 | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL084884 | IQD 進口晶振 | IQXC-217 | 32.768 kHz | ±20ppm | 7pF |
| LFXTAL084883 | IQD 進口晶振 | IQXC-217 | 32.768 kHz | ±20ppm | 9pF |
| LFXTAL034654REEL | IQD 進口晶振 | HC49/4HSMX | 4 MHz | ±20ppm | 18pF |
| LFXTAL028392REEL | IQD 進口晶振 | HC49/4HSMX | 4.9152 MHz | ±30ppm | 18pF |
| LFXTAL011300REEL | IQD 進口晶振 | HC49/4HSMX | 4 MHz | ±30ppm | 30pF |
| LFXTAL017145REEL | IQD 進口晶振 | HC49/4HSMX | 10 MHz | ±30ppm | 30pF |
| LFXTAL017146REEL | IQD 進口晶振 | HC49/4HSMX | 20 MHz | ±30ppm | 30pF |
