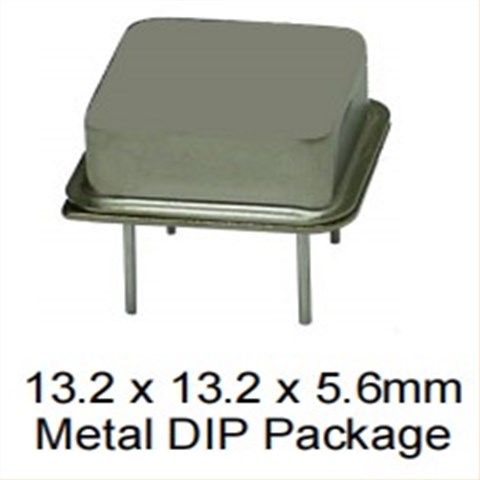

CPPLC4-B6-16.896TS,16.896MHz,Cardinal晶振,CPPL4系列時鐘振蕩器，美國進口晶振，Cardinal晶振，卡迪納爾晶振，型號：CPPL4系列，編碼為CPPLC4-B6-16.896TS，電壓：5.0V，頻率為：16.896MHz，工作溫度范圍：0℃至+70℃，頻率穩定性：±100ppm，CMOS輸出晶振，尺寸為：13.2x13.2x5.6mm金屬DIP封裝，有源晶振，石英晶振，石英晶體振蕩器，時鐘振蕩器。應用程序：驅動A/D，D/As，FPGAs，數字視頻，以太網，GbE，醫療設備，存儲區域網絡，COTS，寬帶接入，SONET/SDH/DWDM，測試和測量。

CPPLC4-B6-16.896TS,16.896MHz,Cardinal晶振,CPPL4系列時鐘振蕩器，產品特點：

•CMOS輸出（將與TTL設備接口）

•啟用/禁用功能（可選待機功能）

•3.3V或5.0V標稱電源電壓

•半DIP封裝

•工廠編程

LH-2

CTS-2

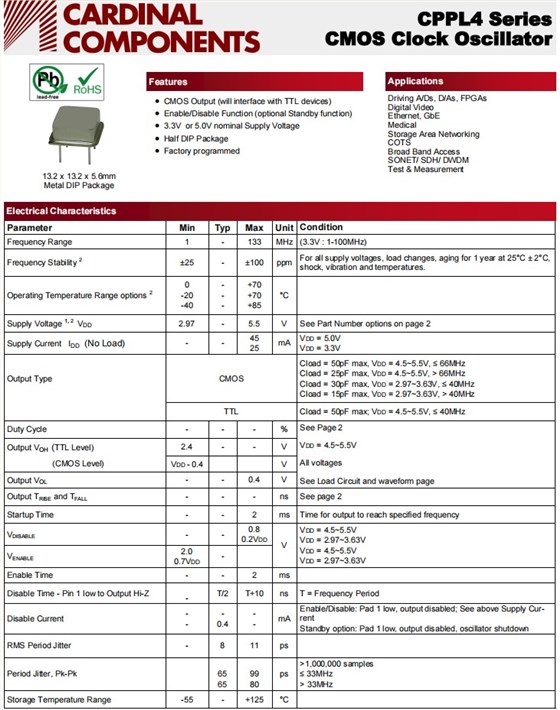

CPPLC4-B6-16.896TS,16.896MHz,Cardinal晶振,CPPL4系列時鐘振蕩器,參數表

Electrical Characteristics CPPL4參數說明
Parameter			Min	Typ	Max	Unit	Condition
Frequency Range				16.896		MHz	(3.3V : 1-100MHz)
Frequency Stability	2		±25	-	±100	ppm	For all supply voltages, load changes, aging for 1 year at 25°C ± 2°C, shock, vibration and temperatures.
			0	-	70
Operating Temperature Range options		2	-20	-	70	°C
			-40	-	85
Supply Voltage1, 2VDD			2.97	-	5.5	V	See Part Number options on page 2
Supply Current IDD(No Load)			-	-	45	mA	VDD= 5.0V
Supply Current IDD(No Load)			-	-	25	mA	VDD= 3.3V
							Cload = 50pF max, VDD= 4.5~5.5V, ≤ 66MHz
Output Type			CMOS				Cload = 25pF max, VDD= 4.5~5.5V, > 66MHz
							Cload = 30pF max, VDD= 2.97~3.63V, ≤ 40MHz
							Cload = 15pF max, VDD= 2.97~3.63V, > 40MHz
			TTL				Cload = 50pF max; VDD= 4.5~5.5V, ≤ 40MHz
Duty Cycle			-	-	-	%	See Page 2
Output VOH(TTL Level)			2.4	-	-	V	VDD= 4.5~5.5V
(CMOS Level)			VDD- 0.4			V	All voltages
Output VOL			-	-	0.4	V	See Load Circuit and waveform page
Output TRISEand TFALL			-	-	-	ns	See page 2
Startup Time			-	-	2	ms	Time for output to reach specified frequency
VDISABLE			-	-	0.8 0.2VDD		VDD= 4.5~5.5V
						V	VDD= 2.97~3.63V
							VDD= 4.5~5.5V
VENABLE			2.0 0.7VDD	-			VDD= 2.97~3.63V
Enable Time			-	-	2	ms
Disable Time - Pin 1 low to Output Hi-Z				T/2	T+10	ns	T = Frequency Period
Disable Time - Pin 1 low to Output Hi-Z			-	T/2	T+10	ns	T = Frequency Period
Disable Current			-	-	-	mA	Enable/Disable: Pad 1 low, output disabled; See above Supply Cur- rent
Disable Current			-	0.4	-	mA	Standby option: Pad 1 low, output disabled, oscillator shutdown
RMS Period Jitter			-	8	11	ps
Period Jitter, Pk-Pk				65	99	ps	>1,000,000 samples
				65	80		≤ 33MHz
							> 33MHz
Storage Temperature Range			-55	-	125	°C

LH-3

ECS-1

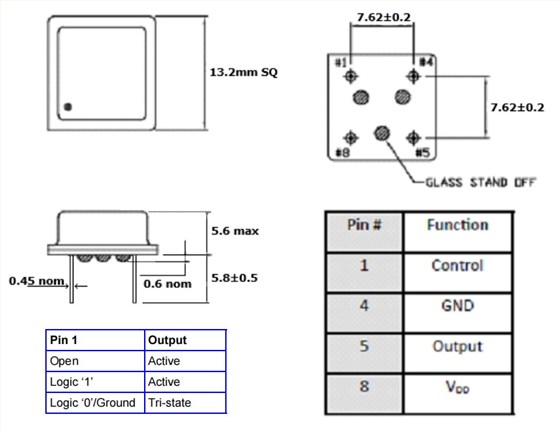

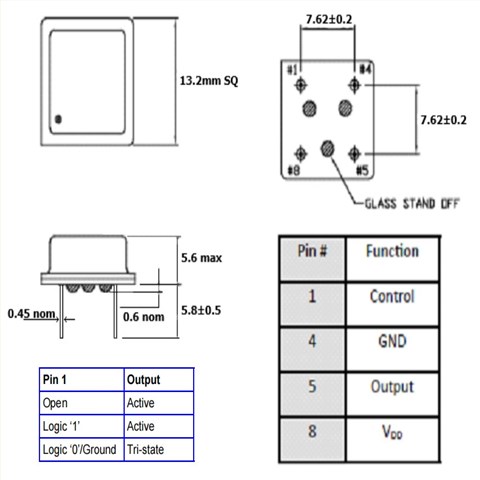

CPPLC4-B6-16.896TS,16.896MHz,Cardinal晶振,CPPL4系列時鐘振蕩器,尺寸圖
