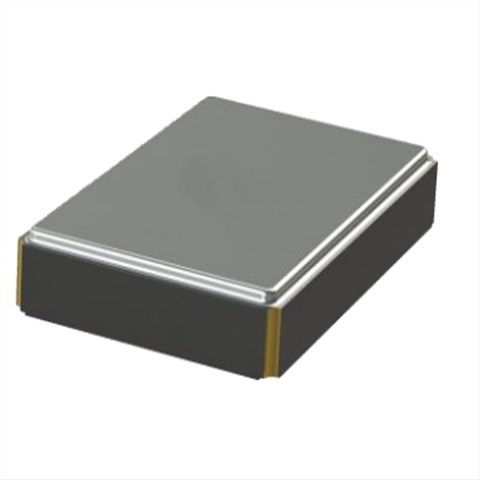

Bliley四腳無源晶振,BQCSB-32MHZD-DBB18T,32MHZ,6035mm，尺寸6.0x3.5mm，頻率32MHZ，水晶振動子，輕薄型晶振，歐美進口晶振，百利無源晶振，無源貼片晶振，貼片晶振，6035四腳晶振，32MHZ無源晶振，無源晶振，SMD晶振，小體積晶振，無鉛環保晶振，高質量晶振，高性能晶振，低損耗晶振，低功耗晶振，低耗能晶振，數碼電子晶振，測試設備晶振，小型設備晶振，以太網晶振，視聽設備晶振，智能家居晶振，移動通信晶振，具有小體積高質量高性能的特點。
SMD晶體產品比較適合用于數碼電子，測試設備，小型設備，以太網，視聽設備，智能家居，移動通信等應用領域。Bliley四腳無源晶振,BQCSB-32MHZD-DBB18T,32MHZ,6035mm.

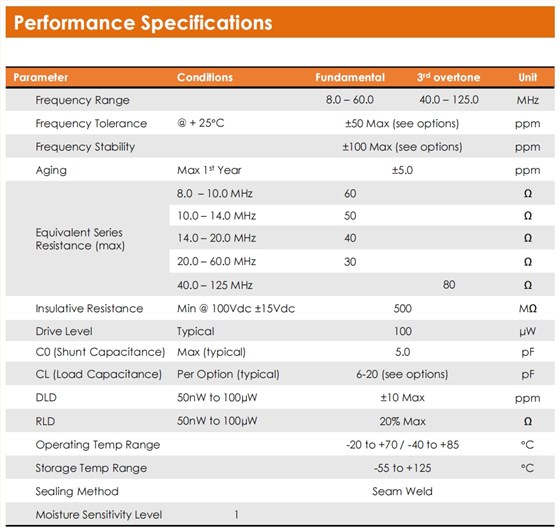

Bliley四腳無源晶振,BQCSB-32MHZD-DBB18T,32MHZ,6035mm 參數表
| Parameter | ConditionsFundamental3rdovertoneUnit | ||||||||||||||||||||||||
| Frequency Range | 32.040.0 – 125.0MHz | ||||||||||||||||||||||||
| Frequency Tolerance | @ + 25℃±50 Max (see options)ppm | ||||||||||||||||||||||||
| Frequency Stability | ±100 Max (see options)ppm | ||||||||||||||||||||||||
| Aging | Max 1stYear±5.0ppm | ||||||||||||||||||||||||
|
Equivalent Series Resistance (max) |
8.0– 10.0 MHz60Ω | ||||||||||||||||||||||||
| 10.0 – 14.0 MHz50Ω | |||||||||||||||||||||||||
| 14.0 – 20.0 MHz40 Ω | |||||||||||||||||||||||||
| 20.0 – 60.0 MHz30Ω | |||||||||||||||||||||||||
| 40.0 – 125 MHz80Ω | |||||||||||||||||||||||||
| Insulative Resistance | Min @ 100Vdc ±15Vdc500MΩ | ||||||||||||||||||||||||
| Drive Level | Typical100μW | ||||||||||||||||||||||||
| C0 (Shunt Capacitance) | Max (typical)5.0pF | ||||||||||||||||||||||||
| CL (Load Capacitance) | Per Option (typical)6-20 (see options)pF | ||||||||||||||||||||||||
| DLD | 50nW to 100µW±10 Maxppm | ||||||||||||||||||||||||
| RLD | 50nW to 100µW20% MaxΩ | ||||||||||||||||||||||||
| Operating Temp Range | -20 to +70 / -40 to +85℃ | ||||||||||||||||||||||||
| Storage Temp Range | -55 to +125℃ | ||||||||||||||||||||||||
| Sealing Method | Seam Weld | ||||||||||||||||||||||||
| Moisture Sensitivity Level | 1 | ||||||||||||||||||||||||

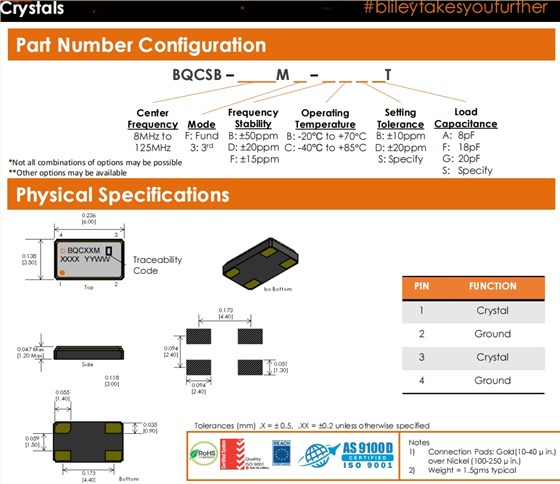

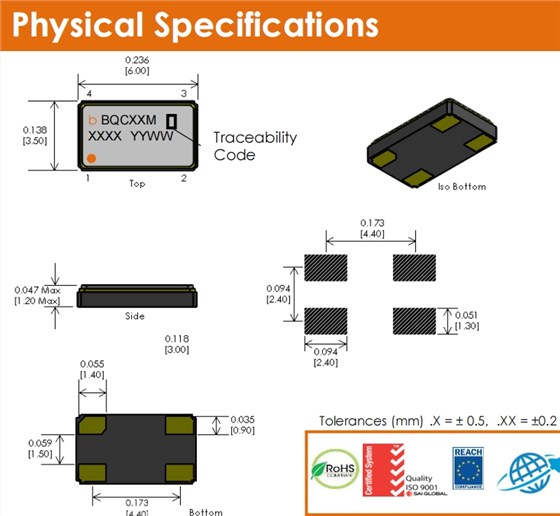

Bliley四腳無源晶振,BQCSB-32MHZD-DBB18T,32MHZ,6035mm 尺寸圖
Bliley四腳無源晶振,BQCSB-32MHZD-DBB18T,32MHZ,6035mm
