首頁 Skyworks晶振

Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳訊差分振蕩器

Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳訊差分振蕩器Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳訊差分振蕩器

產品簡介

Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳訊差分振蕩器，尺寸7.0×5.0mm，頻率26MHZ，電壓3.3V，輸出邏輯CMOS，有源貼片晶振，有源晶體振蕩器，六腳貼片晶振，7050mm有源晶振，石英晶體振蕩器，CMOS輸出有源晶振，CMOS貼片型振蕩器，OSC振蕩器，SMD有源振蕩器，低抖動振蕩器，低電壓有源晶振，低損耗有源晶振，低相位有源振蕩器，低功耗有源晶振，低相噪有源晶振，高質量晶振，網絡設備有源晶振，測試測量有源晶振，ASIC時鐘生成有源晶振，工業應用有源晶振，具有高質量低抖動的特點.

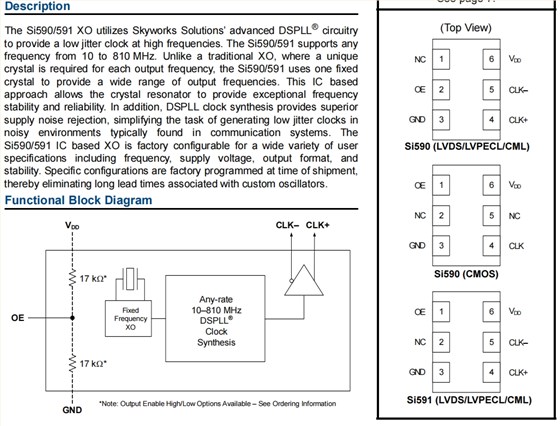

Si590/591 XO石英晶體振蕩器采用Skyworks Solutions的先進DSPLL®電路以提供高頻下的低抖動時鐘。Si590/591支持任何頻率為10至810MHz。不同于傳統的XO每個輸出頻率都需要晶體，Si590/591使用一個固定的晶體，以提供寬范圍的輸出頻率。此IC基于這種方法允許晶體諧振器提供特殊的頻率穩定性和可靠性。此外，DSPLL時鐘合成提供了卓越的性能電源噪聲抑制，簡化了在通信系統中常見的噪聲環境.Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳訊差分振蕩器.

產品詳情

Abracon-2

LH-1

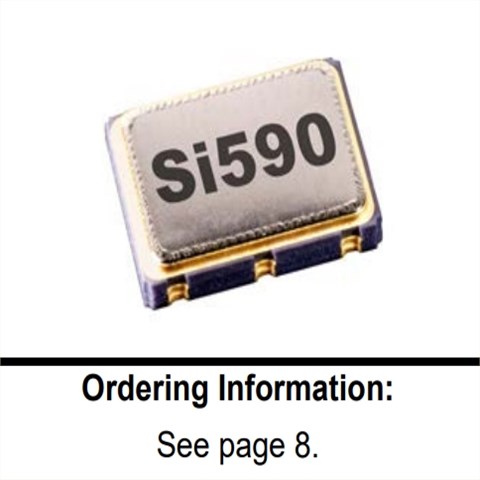

Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳訊差分振蕩器，尺寸7.0×5.0mm，頻率26MHZ，電壓3.3V，輸出邏輯CMOS，有源貼片晶振，有源晶體振蕩器，六腳貼片晶振，7050mm有源晶振，石英晶體振蕩器，CMOS輸出有源晶振，CMOS貼片型振蕩器，OSC振蕩器，SMD有源振蕩器，低抖動振蕩器，低電壓有源晶振，低損耗有源晶振，低相位有源振蕩器，低功耗有源晶振，低相噪有源晶振，高質量晶振，網絡設備有源晶振，測試測量有源晶振，ASIC時鐘生成有源晶振，工業應用有源晶振，具有高質量低抖動的特點.

Si590/591 XO石英晶體振蕩器采用Skyworks Solutions的先進DSPLL®電路以提供高頻下的低抖動時鐘。Si590/591支持任何頻率為10至810MHz。不同于傳統的XO每個輸出頻率都需要晶體，Si590/591使用一個固定的晶體，以提供寬范圍的輸出頻率。此IC基于這種方法允許晶體諧振器提供特殊的頻率穩定性和可靠性。此外，DSPLL時鐘合成提供了卓越的性能電源噪聲抑制，簡化了在通信系統中常見的噪聲環境.Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳訊差分振蕩器.

LH-2

Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳訊差分振蕩器參數表

Parameter Symbol Test Condition Min Typ Max Units
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75
1.8 V option 1.71 1.8 1.89
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS 		—
—
—
— 		110
100
90
80 		125
110
100
90 		mA
Tristate mode — 60 75
Output Enable (OE)2 VIH 0.75 x VDD — — V
VIL — — 0.5
Operating Temperature Range TA –40 — 85 ºC
Parameter Symbol Test Condition Min Typ Max Units
Nominal Frequency1,2 fO LVPECL/LVDS/CML 10 — 810 MHz
CMOS 10 — 160
Initial Accuracy fi Measured at +25 °C at time of
shipping 		— ±1.5 — ppm
Total Stability Note 3, second option code “D” ±20 ppm
Note 3, second option code “C” ±30 ppm
Note 4, second option code “B” — — ±50 ppm
Note 4, second option code “A” — — ±100 ppm
Temperature Stability second option code “D” — — ±7 ppm
second option code “C” ±20 ppm
second option code “B” ±25 ppm
second option code “A” — — ±50 ppm
Powerup Time5 tOSC — — 10 ms
Parameter Symbol Test Condition Min Typ Max Units
LVPECL Output Option1 VO mid-level VDD– 1.42 VDD– 1.25 V
VOD swing (diff) 1.1 1.9 VPP
VSE swing (single-ended) 0.55 0.95 VPP
LVDS Output Option2 VO mid-level 1.125 1.20 1.275 V
VOD swing (diff) 0.5 0.7 0.9 VPP
CML Output Option2 VO 2.5/3.3 V option mid-level — VDD– 1.30 — V
1.8 V option mid-level — VDD– 0.36 —
VOD 2.5/3.3 V option swing (diff) 1.10 1.50 1.90 VPP
1.8 V option swing (diff) 0.35 0.425 0.50
CMOS Output Option3 VOH 0.8 x VDD — VDD V
VOL — — 0.4
Rise/Fall time (20/80%) tR,tF LVPECL/LVDS/CML — — 350 ps
CMOS with CL= 15 pF — 2 — ns
Symmetry (duty cycle) SYM LVPECL:VDD– 1.3 V (diff)
LVDS:1.25 V (diff)
CMOS:VDD/2 		45 — 55 %

LH-3

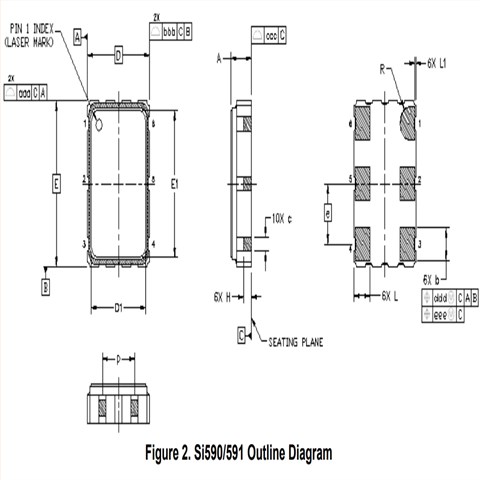

Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳訊差分振蕩器 尺寸圖

Si591 Si590 7050

低耗能晶振產品特點:

可用于任何頻率輸出

頻率從10到810兆赫

具有卓越性能的第三代DSPLL®

抖動性能：最大抖動1ps

比SAW振蕩器具有更好的頻率穩定性

內部基模晶體

確保高可靠性

可用的CMOS、LVPECL、LVDS和CML輸出

3.3、2.5和1.8 V電源選項

行業標準5x7和3.2x5mm包裝

無鉛/符合RoHS

–40至+85ºC運行溫度范圍

Si590 1Si590 2

更多相關Skyworks晶振型號

Mfr Part # 晶振廠家 Description Series Frequency Output Voltage - Supply
590FB122M880DG Skyworks有源晶振 XTAL OSC XO 122.8800MHZ LVDS SMD Si590 122.88 MHz LVDS 2.5V
590FB125M000DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si590 125 MHz LVDS 2.5V
590FB50M0000DG Skyworks有源晶振 XTAL OSC XO 50.0000MHZ LVDS SMD Si590 50 MHz LVDS 2.5V
590MB125M000DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVPECL Si590 125 MHz LVPECL 3.3V
590SB25M0000DG Skyworks有源晶振 XTAL OSC XO 25.0000MHZ LVDS SMD Si590 25 MHz LVDS 2.5V
590WB50M0000DG Skyworks有源晶振 XTAL OSC XO 50.0000MHZ CML SMD Si590 50 MHz CML 1.8V
590AA306M250DG Skyworks有源晶振 XTAL OSC XO 306.2500MHZ LVPECL Si590 306.25 MHz LVPECL 3.3V
590AA340M000DG Skyworks有源晶振 XTAL OSC XO 340.0000MHZ LVPECL Si590 340 MHz LVPECL 3.3V
590AA350M000DG Skyworks有源晶振 XTAL OSC XO 350.0000MHZ LVPECL Si590 350 MHz LVPECL 3.3V
590BA300M000DG Skyworks有源晶振 XTAL OSC XO 300.0000MHZ LVDS SMD Si590 300 MHz LVDS 3.3V
590BA350M000DG Skyworks有源晶振 XTAL OSC XO 350.0000MHZ LVDS SMD Si590 350 MHz LVDS 3.3V
590DA315M000DG Skyworks有源晶振 XTAL OSC XO 315.0000MHZ CML SMD Si590 315 MHz CML 3.3V
590DA435M350DG Skyworks有源晶振 XTAL OSC XO 435.3500MHZ CML SMD Si590 435.35 MHz CML 3.3V
590FA350M000DG Skyworks有源晶振 XTAL OSC XO 350.0000MHZ LVDS SMD Si590 350 MHz LVDS 2.5V
590NA000243DG Skyworks有源晶振 XTAL OSC XO 333.3333MHZ LVDS SMD Si590 333.3333 MHz LVDS 3.3V
590FA800M000DG Skyworks有源晶振 XTAL OSC XO 800.0000MHZ LVDS SMD Si590 800 MHz LVDS 2.5V
590AA306M250DGR Skyworks有源晶振 XTAL OSC XO 306.2500MHZ LVPECL Si590 306.25 MHz LVPECL 3.3V
590AA340M000DGR Skyworks有源晶振 XTAL OSC XO 340.0000MHZ LVPECL Si590 340 MHz LVPECL 3.3V
590AA350M000DGR Skyworks有源晶振 XTAL OSC XO 350.0000MHZ LVPECL Si590 350 MHz LVPECL 3.3V
590BA300M000DGR Skyworks有源晶振 XTAL OSC XO 300.0000MHZ LVDS SMD Si590 300 MHz LVDS 3.3V
590BA350M000DGR Skyworks有源晶振 XTAL OSC XO 350.0000MHZ LVDS SMD Si590 350 MHz LVDS 3.3V
590DA315M000DGR Skyworks有源晶振 XTAL OSC XO 315.0000MHZ CML SMD Si590 315 MHz CML 3.3V
590DA435M350DGR Skyworks有源晶振 XTAL OSC XO 435.3500MHZ CML SMD Si590 435.35 MHz CML 3.3V
590FA350M000DGR Skyworks有源晶振 XTAL OSC XO 350.0000MHZ LVDS SMD Si590 350 MHz LVDS 2.5V
590NA000243DGR Skyworks有源晶振 XTAL OSC XO 333.3333MHZ LVDS SMD Si590 333.3333 MHz LVDS 3.3V
590BA273M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si590 273 MHz LVDS 3.3V
590NA312M700DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si590 312.7 MHz LVDS 3.3V
590BE273M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 273 MHz LVDS 3.3V
590NE273M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 273 MHz LVDS 3.3V
590AE312M500DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 312.5 MHz LVPECL 3.3V
590BE300M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 300 MHz LVDS 3.3V
590NE312M700DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 312.7 MHz LVDS 3.3V
590BE312M700DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 312.7 MHz LVDS 3.3V
590AC144M300DG Skyworks有源晶振 XTAL OSCILLATOR Si590 144.3 MHz LVPECL 3.3V
590DD34M3680DG Skyworks有源晶振 XTAL OSCILLATOR Si590 34.368 MHz CML 3.3V
590FD32M0000DG Skyworks有源晶振 XTAL OSCILLATOR Si590 32 MHz LVDS 2.5V
590FD32M2400DG Skyworks有源晶振 XTAL OSCILLATOR Si590 32.24 MHz LVDS 2.5V
590FD36M0000DG Skyworks有源晶振 XTAL OSCILLATOR Si590 36 MHz LVDS 2.5V
590FC200M000DG Skyworks有源晶振 XO DIFF OE PIN 2 10-810MHZ Si590 200 MHz LVDS 2.5V
590BC000185DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 161.132812 MHz LVDS 3.3V
590BC200M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 200 MHz LVDS 3.3V
590FD40M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 40 MHz LVDS 2.5V
590BD80M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 80 MHz LVDS 3.3V
590FD61M3800DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 61.38 MHz LVDS 2.5V
590FD100M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 100 MHz LVDS 2.5V
590KD106M250DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 106.25 MHz CML 1.8V
590KD80M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 80 MHz CML 1.8V
590PD130M560DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 130.56 MHz CMOS 3.3V
590BD74M2500DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 74.25 MHz LVDS 3.3V
590BD122M880DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 122.88 MHz LVDS 3.3V
590BC000351DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 195.3125 MHz LVDS 3.3V
590BG150M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 150 MHz LVDS 3.3V
590EC148M500DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 148.5 MHz LVPECL 2.5V
590KD25M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 25 MHz CML 1.8V
590AG156M250DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 156.25 MHz LVPECL 3.3V
590KG000244DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 244 MHz CML 1.8V
590KG148M500DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 148.5 MHz CML 1.8V
590FA800M000DGR Skyworks有源晶振 XTAL OSC XO 800.0000MHZ LVDS SMD Si590 800 MHz LVDS 2.5V
590AB156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si590 156.25 MHz LVPECL 3.3V
590AC135M000DG Skyworks有源晶振 XTAL OSC XO 135.0000MHZ LVPECL Si590 135 MHz LVPECL 3.3V
590AC155M025DG Skyworks有源晶振 XTAL OSC XO 155.0250MHZ LVPECL Si590 155.025 MHz LVPECL 3.3V
590AC156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si590 156.25 MHz LVPECL 3.3V
590AD10M0000DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si590 10 MHz LVPECL 3.3V
590AD20M0000DG Skyworks有源晶振 XTAL OSC XO 20.0000MHZ LVPECL Si590 20 MHz LVPECL 3.3V
590BC000118DG Skyworks有源晶振 XTAL OSC XO 118.0000KHZ LVDS SMD Si590 118 kHz LVDS 3.3V
590BC148M350DG Skyworks有源晶振 XTAL OSC XO 148.3500MHZ LVDS SMD Si590 148.35 MHz LVDS 3.3V
590BC148M500DG Skyworks有源晶振 XTAL OSC XO 148.5000MHZ LVDS SMD Si590 148.5 MHz LVDS 3.3V
590BC150M000DG Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si590 150 MHz LVDS 3.3V
590BC156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si590 156.25 MHz LVDS 3.3V
590BD10M0000DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVDS SMD Si590 10 MHz LVDS 3.3V
590BD125M000DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si590 125 MHz LVDS 3.3V
590BD20M0000DG Skyworks有源晶振 XTAL OSC XO 20.0000MHZ LVDS SMD Si590 20 MHz LVDS 3.3V
590BD24M5760DG Skyworks有源晶振 XTAL OSC XO 24.5760MHZ LVDS SMD Si590 24.576 MHz LVDS 3.3V
590DC148M500DG Skyworks有源晶振 XTAL OSC XO 148.5000MHZ CML SMD Si590 148.5 MHz CML 3.3V
590FC156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si590 156.25 MHz LVDS 2.5V
590FD125M000DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si590 125 MHz LVDS 2.5V
590FD50M0000DG Skyworks有源晶振 XTAL OSC XO 50.0000MHZ LVDS SMD Si590 50 MHz LVDS 2.5V
590FD74M2500DG Skyworks有源晶振 XTAL OSC XO 74.2500MHZ LVDS SMD Si590 74.25 MHz LVDS 2.5V
590JD150M000DG Skyworks有源晶振 XTAL OSC XO 150.0000MHZ CMOS SMD Si590 150 MHz CMOS 1.8V
590KD61M4400DG Skyworks有源晶振 XTAL OSC XO 61.4400MHZ CML SMD Si590 61.44 MHz CML 1.8V
590PD133M330DG Skyworks有源晶振 XTAL OSC XO 133.3300MHZ CMOS SMD Si590 133.33 MHz CMOS 3.3V
590CG25M0000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 25 MHz CMOS 3.3V
590NA312M700DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si590 312.7 MHz LVDS 3.3V
590BA273M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si590 273 MHz LVDS 3.3V
590NE312M700DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 312.7 MHz LVDS 3.3V
590BE273M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 273 MHz LVDS 3.3V
590BE300M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 300 MHz LVDS 3.3V
590BE312M700DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 312.7 MHz LVDS 3.3V
590AE312M500DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 312.5 MHz LVPECL 3.3V
590NE273M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 273 MHz LVDS 3.3V
590AD155M520DGR Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVPECL Si590 155.52 MHz LVPECL 3.3V
590AD156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si590 156.25 MHz LVPECL 3.3V
590BD148M500DGR Skyworks有源晶振 XTAL OSC XO 148.5000MHZ LVDS SMD Si590 148.5 MHz LVDS 3.3V
590BD156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si590 156.25 MHz LVDS 3.3V
590BD200M000DGR Skyworks有源晶振 XTAL OSC XO 200.0000MHZ LVDS SMD Si590 200 MHz LVDS 3.3V
590DD148M500DGR Skyworks有源晶振 XTAL OSC XO 148.5000MHZ CML SMD Si590 148.5 MHz CML 3.3V
590DD161M133DGR Skyworks有源晶振 XTAL OSC XO 161.1330MHZ CML SMD Si590 161.133 MHz CML 3.3V
590ED156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si590 156.25 MHz LVPECL 2.5V
590FD156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si590 156.25 MHz LVDS 2.5V
590WD156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ CML SMD Si590 156.25 MHz CML 1.8V
590DD160M000DGR Skyworks有源晶振 XTAL OSCILLATOR Si590 160 MHz CML 3.3V
590FD200M000DGR Skyworks有源晶振 XTAL OSCILLATOR Si590 200 MHz LVDS 2.5V
590BD130M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 130 MHz LVDS 3.3V
590BD200M395DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 200.395 MHz LVDS 3.3V
590AD000388DGR Skyworks有源晶振 XTAL OSC XO 388.0000KHZ LVPECL Si590 388 kHz LVPECL 3.3V
590AB000274DG Skyworks有源晶振 XTAL OSC XO 274.0000KHZ LVPECL Si590 274 kHz LVPECL 3.3V
590AB312M500DG Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVPECL Si590 312.5 MHz LVPECL 3.3V
590BB000274DG Skyworks有源晶振 XTAL OSC XO 274.0000KHZ LVDS SMD Si590 274 kHz LVDS 3.3V
590BB300M000DG Skyworks有源晶振 XTAL OSC XO 300.0000MHZ LVDS SMD Si590 300 MHz LVDS 3.3V
590BB400M000DG Skyworks有源晶振 XTAL OSC XO 400.0000MHZ LVDS SMD Si590 400 MHz LVDS 3.3V
590FB000274DG Skyworks有源晶振 XTAL OSC XO 274.0000KHZ LVDS SMD Si590 274 kHz LVDS 2.5V
590FB222M000DG Skyworks有源晶振 XTAL OSC XO 222.0000MHZ LVDS SMD Si590 222 MHz LVDS 2.5V
590FB250M000DG Skyworks有源晶振 XTAL OSC XO 250.0000MHZ LVDS SMD Si590 250 MHz LVDS 2.5V
590FB300M000DG Skyworks有源晶振 XTAL OSC XO 300.0000MHZ LVDS SMD Si590 300 MHz LVDS 2.5V
590FB322M266DG Skyworks有源晶振 XTAL OSC XO 322.2660MHZ LVDS SMD Si590 322.266 MHz LVDS 2.5V
590FB403M000DG Skyworks有源晶振 XTAL OSC XO 403.0000MHZ LVDS SMD Si590 403 MHz LVDS 2.5V
590FB444M000DG Skyworks有源晶振 XTAL OSC XO 444.0000MHZ LVDS SMD Si590 444 MHz LVDS 2.5V
590FB500M000DG Skyworks有源晶振 XTAL OSC XO 500.0000MHZ LVDS SMD Si590 500 MHz LVDS 2.5V
590FB501M000DG Skyworks有源晶振 XTAL OSC XO 501.0000MHZ LVDS SMD Si590 501 MHz LVDS 2.5V
590NB311M040DG Skyworks有源晶振 XTAL OSC XO 311.0400MHZ LVDS SMD Si590 311.04 MHz LVDS 3.3V
590CD14M7456DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 14.7456 MHz CMOS 3.3V
590FB222M000DGR Skyworks有源晶振 XTAL OSC XO 222.0000MHZ LVDS SMD Si590 222 MHz LVDS 2.5V
590FB250M000DGR Skyworks有源晶振 XTAL OSC XO 250.0000MHZ LVDS SMD Si590 250 MHz LVDS 2.5V
590FB300M000DGR Skyworks有源晶振 XTAL OSC XO 300.0000MHZ LVDS SMD Si590 300 MHz LVDS 2.5V
590FB322M266DGR Skyworks有源晶振 XTAL OSC XO 322.2660MHZ LVDS SMD Si590 322.266 MHz LVDS 2.5V
590FB403M000DGR Skyworks有源晶振 XTAL OSC XO 403.0000MHZ LVDS SMD Si590 403 MHz LVDS 2.5V
590FB444M000DGR Skyworks有源晶振 XTAL OSC XO 444.0000MHZ LVDS SMD Si590 444 MHz LVDS 2.5V
590FB500M000DGR Skyworks有源晶振 XTAL OSC XO 500.0000MHZ LVDS SMD Si590 500 MHz LVDS 2.5V
590FB501M000DGR Skyworks有源晶振 XTAL OSC XO 501.0000MHZ LVDS SMD Si590 501 MHz LVDS 2.5V
590NB311M040DGR Skyworks有源晶振 XTAL OSC XO 311.0400MHZ LVDS SMD Si590 311.04 MHz LVDS 3.3V
590BB266M500DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 266.5 MHz LVDS 3.3V
590EB500M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 500 MHz LVPECL 2.5V
590BF300M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 300 MHz LVDS 3.3V
590FC55M0000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 55 MHz LVDS 2.5V
590AD155M520DG Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVPECL Si590 155.52 MHz LVPECL 3.3V
590AD156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si590 156.25 MHz LVPECL 3.3V
590BD148M500DG Skyworks有源晶振 XTAL OSC XO 148.5000MHZ LVDS SMD Si590 148.5 MHz LVDS 3.3V
590BD156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si590 156.25 MHz LVDS 3.3V
590BD200M000DG Skyworks有源晶振 XTAL OSC XO 200.0000MHZ LVDS SMD Si590 200 MHz LVDS 3.3V
590DD148M500DG Skyworks有源晶振 XTAL OSC XO 148.5000MHZ CML SMD Si590 148.5 MHz CML 3.3V
590DD161M133DG Skyworks有源晶振 XTAL OSC XO 161.1330MHZ CML SMD Si590 161.133 MHz CML 3.3V
590ED156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si590 156.25 MHz LVPECL 2.5V
590FD156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si590 156.25 MHz LVDS 2.5V
590WD156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ CML SMD Si590 156.25 MHz CML 1.8V
590DD160M000DG Skyworks有源晶振 XTAL OSCILLATOR Si590 160 MHz CML 3.3V
590FD200M000DG Skyworks有源晶振 XTAL OSCILLATOR Si590 200 MHz LVDS 2.5V
590BD200M395DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 200.395 MHz LVDS 3.3V
590BD130M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 130 MHz LVDS 3.3V
590AB000274DGR Skyworks有源晶振 XTAL OSC XO 274.0000KHZ LVPECL Si590 274 kHz LVPECL 3.3V
590AB312M500DGR Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVPECL Si590 312.5 MHz LVPECL 3.3V
590BB000274DGR Skyworks有源晶振 XTAL OSC XO 274.0000KHZ LVDS SMD Si590 274 kHz LVDS 3.3V
590BB300M000DGR Skyworks有源晶振 XTAL OSC XO 300.0000MHZ LVDS SMD Si590 300 MHz LVDS 3.3V
590BB400M000DGR Skyworks有源晶振 XTAL OSC XO 400.0000MHZ LVDS SMD Si590 400 MHz LVDS 3.3V
590FB000274DGR Skyworks有源晶振 XTAL OSC XO 274.0000KHZ LVDS SMD Si590 274 kHz LVDS 2.5V
590FC275M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 275 MHz LVDS 2.5V
590AC300M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 300 MHz LVPECL 3.3V
590BC300M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 300 MHz LVDS 3.3V
590MC385M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 385 MHz LVPECL 3.3V
590FG297M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 297 MHz LVDS 2.5V
590FG300M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 300 MHz LVDS 2.5V
590BG312M700DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 312.7 MHz LVDS 3.3V
590BG300M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 300 MHz LVDS 3.3V
590KG004712DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 322.265265 MHz CML 1.8V
590BC312M800DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 312.8 MHz LVDS 3.3V
590BG273M000DGR Skyworks DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 273 MHz LVDS 3.3V
590AC270M000DGR Skyworks有源晶振 XTAL OSC XO 270.0000MHZ LVPECL Si590 270 MHz LVPECL 3.3V
590AC290M122DGR Skyworks有源晶振 XTAL OSC XO 290.1220MHZ LVPECL Si590 290.122 MHz LVPECL 3.3V
590AC496M000DGR Skyworks有源晶振 XTAL OSC XO 496.0000MHZ LVPECL Si590 496 MHz LVPECL 3.3V
590AC500M000DGR Skyworks有源晶振 XTAL OSC XO 500.0000MHZ LVPECL Si590 500 MHz LVPECL 3.3V
590BC270M100DGR Skyworks有源晶振 XTAL OSC XO 270.1000MHZ LVDS SMD Si590 270.1 MHz LVDS 3.3V
590BC296M703DGR Skyworks有源晶振 XTAL OSC XO 296.7030MHZ LVDS SMD Si590 296.703 MHz LVDS 3.3V
590BC297M000DGR Skyworks有源晶振 XTAL OSC XO 297.0000MHZ LVDS SMD Si590 297 MHz LVDS 3.3V
590AC299M500DGR Skyworks有源晶振 XTAL OSCILLATOR Si590 299.5 MHz LVPECL 3.3V
590AC500M800DGR Skyworks有源晶振 XTAL OSCILLATOR Si590 500 MHz LVPECL 3.3V
590BC000274DGR Skyworks有源晶振 XTAL OSCILLATOR Si590 322.265625 MHz LVDS 3.3V
590FC300M000DGR Skyworks有源晶振 XTAL OSCILLATOR Si590 300 MHz LVDS 2.5V
590BB266M500DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 266.5 MHz LVDS 3.3V
590BF300M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 300 MHz LVDS 3.3V
590EB500M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 500 MHz LVPECL 2.5V
590AD000388DG Skyworks有源晶振 XTAL OSC XO 388.0000KHZ LVPECL Si590 388 kHz LVPECL 3.3V
590CG25M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 25 MHz CMOS 3.3V
590AC270M000DG Skyworks有源晶振 XTAL OSC XO 270.0000MHZ LVPECL Si590 270 MHz LVPECL 3.3V
590AC290M122DG Skyworks有源晶振 XTAL OSC XO 290.1220MHZ LVPECL Si590 290.122 MHz LVPECL 3.3V

LH-6

我要下單

  • 姓名
  • 手機
  • 留言

點擊返回頂部點擊返回頂部
张凌赫设计的竹节包什么样| 李现又去公园打鸟了| 黄子韬徐艺洋睡觉前要对暗号| 李现又去公园打鸟了| 2025中国网络媒体论坛| 美防长声称要用日本应对中国| 韩国庄仕洋| 男子发现打工养了7年的女儿非亲生| 甲亢哥针灸正骨后已老实| 难哄3月全网播放冠军| 心理师锐评赵露思新综艺| 山姆客服称水果中吃出虫是正常情况| BLACKPINK未公开的物料| 唐艺昕辟谣和张若昀因为追尾认识河南一枯井发现近百名烈士遗骸 | CBA季后赛对阵| 白敬亭 宋轶| 日本特大地震若发生或致近30万人死亡| 金秀贤记者会直播| 男子赠妻子闺蜜7万被判全额返还加利息 | 想和你去四月的春天里坐坐| 泰高空走廊被震断男子奋力跳向对面| 王艳发了赤脚鬼| 黄子韬徐艺洋睡觉前要对暗号| 马龙说全运会后还想参加比赛| 横店变竖店了| 何泓姗硬刚浪姐| 2025年沃尔沃中国公开赛资格赛收官杨伊农陈顾新并列折桂 | BLACKPINK未公开的物料| 乘风2025四公帮唱组队征集| 4层及以上住宅设电梯| 雁回时反转| 乌尔善发文| 王文也男友求婚成功| 三十位女性成员破圈登场乘风2025打造全户外公演舞台 | 美国又有一架飞机坠毁| 李现的微博逐渐奇怪| 雁回时反转| 乌尔善说期待未来在作品中再相聚 | 来自假惺惺的你| 时代少年团 录播| 乘风2025四公帮唱组队征集|
