LH-1

Skyworks低功耗振蕩器Si515,6G交換機晶振,515CDA8M00000AAGR，尺寸7.0×5.0mm，頻率8MHZ，支持輸出CMOS，VCXO壓控晶振，SMD振蕩器，OSC振蕩器，壓控振蕩器，貼片壓控晶振，有源壓控晶振，有源晶體振蕩器，六腳貼片壓控振蕩器，電信專用壓控晶振，7050mm有源晶振，低抖動壓控晶振，路由器專用壓控晶振，低電壓壓控晶振，低功耗壓控晶振，低抖動壓控晶振，數字視頻專用壓控晶振，高性能壓控晶振，低損耗有源晶振，具有超高的可靠性能以及穩定性能。產品常用于低抖動PLL，xDSL，廣播視頻，電信，交換機/路由器，FPGA/ASIC時鐘生成等領域。

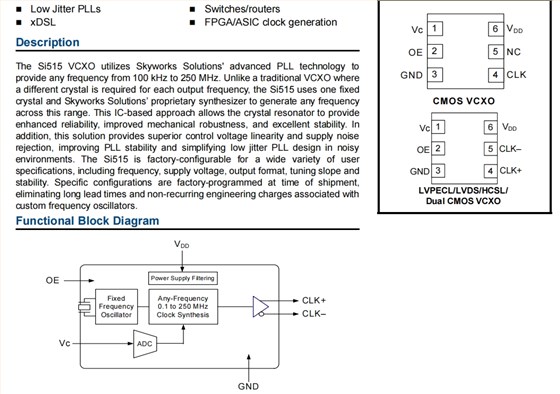

Si515 VCXO晶振利用Skyworks Solutions的先進PLL技術提供從100kHz到250MHz的任何頻率。不同于傳統的VCXO每個輸出頻率都需要不同的晶體，Si515使用一個固定的晶體crystal和Skyworks Solutions的專有合成器，可生成任何頻率在這個范圍內。這種基于IC的方法允許晶體諧振器提供增強的可靠性、改進的機械堅固性和優異的穩定性。Skyworks低功耗振蕩器Si515,6G交換機晶振,515CDA8M00000AAGR.

LH-2

Skyworks低功耗振蕩器Si515,6G交換機晶振,515CDA8M00000AAGR 參數表

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75	V
Supply Current	IDD	CMOS, 100 MHz, single-ended	—	24	29	mA
		LVDS (output enabled)	—	22	26	mA
		LVPECL (output enabled)	—	42	46	mA
		HCSL (output enabled)	—	44	47	mA
		Tristate (output disabled)	—	—	22	mA
OE “1” Setting	VIH	See Note	0.80 x VDD	—	—	V
OE “0” Setting	VIL	See Note	—	—	0.20 x VDD	V
OE Internal Pull-Up/ Pull-Down Resistor*	RI		—	45	—	kΩ
Operating Temperature	TA		–40	—	85	oC

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Control Voltage Range

0.1 x VDD

VDD/2

0.9 x VDD

Control Voltage Tuning Slope
(10 to 90% VDD)

Positive slope,
ordering option

60, 90, 120, 150

ppm/V

Kv Variation

Kv_var

—

±10

Control Voltage Linearity

LVC

BSL

–5

±1

Modulation Bandwidth

—

kHz

Vc Input Impedance

ZVC

—

100

—

kΩ

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Nominal Frequency

CMOS, Dual CMOS

0.1

—

212.5

MHz

LVDS/LVPECL/HCSL

0.1

—

250

MHz

Temperature Stability

TA= –40 to +85oC

–20

—

+20

ppm

Aging

Frequency drift over 10 year life

—

±8.5

ppm

Minimum Absolute Pull Range

APR

Ordering option

±30, ±50,±80, ±100

ppm

Startup Time

TSU

Minimum VDDto output fre-
quency (FO) within specification

—

Disable Time

FO> 10 MHz

—

µs

FO< 10 MHz

µs

Enable Time

FO> 10 MHz

—

µs

FO< 10 MHz

µs

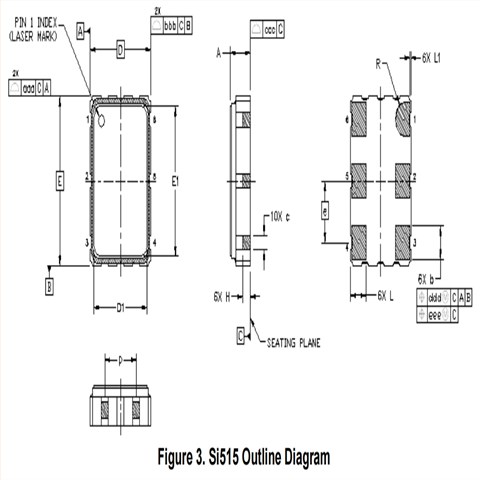

Skyworks低功耗振蕩器Si515,6G交換機晶振,515CDA8M00000AAGR 尺寸圖

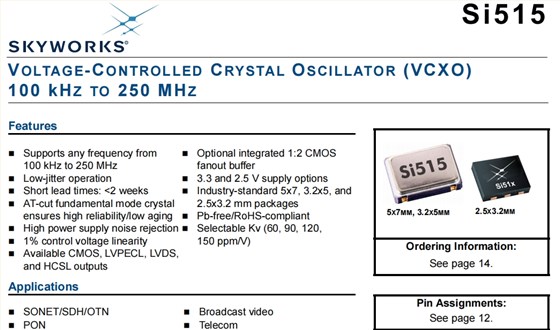

壓控晶振產品特性：

支持來自的任何頻率100kHz至250MHz

低抖動操作

交付周期短：<2周

AT切基模晶體

確保高可靠性/低老化

高電源噪聲抑制

1%控制電壓線性

可用CMOS、LVPECL、LVDS和HCSL輸出

可選集成1:2 CMOS扇出緩存

3.3和2.5 V電源選項

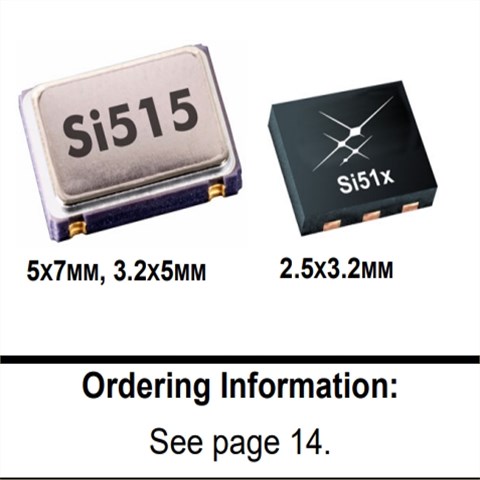

行業標準5x7、3.2x5和2.5x3.2 mm包裝

無鉛/符合RoHS

可選擇的Kv（60、90、120，150 ppm/V）

更多相關美國Skyworks晶振型號

Mfr Part #	進口晶振	Description	Series	Frequency	Output	Voltage - Supply	Frequency Stability
531AC125M000DG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVPECL	Si531	125 MHz	LVPECL	3.3V	±7ppm
531EC125M000DG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVPECL	Si531	125 MHz	LVPECL	2.5V	±7ppm
531FC106M250DG	Skyworks有源晶振	XTAL OSC XO 106.2500MHZ LVDS SMD	Si531	106.25 MHz	LVDS	2.5V	±7ppm
530AC155M520DGR	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVPECL	Si530	155.52 MHz	LVPECL	3.3V	±7ppm
531AC200M000DGR	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVPECL	Si531	200 MHz	LVPECL	3.3V	±7ppm
531BC000110DGR	Skyworks有源晶振	XTAL OSC XO 148.35165MHZ LVDS	Si531	148.35165 MHz	LVDS	3.3V	±7ppm
531BC148M500DGR	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si531	148.5 MHz	LVDS	3.3V	±7ppm
565BAA208M000BBG	Skyworks有源晶振	XTAL OSC VCXO 208.0000MHZ SMD	Ultra™ Si565	208 MHz	LVDS	1.8V, 2.5V, 3.3V	±20ppm
550CE102M400DG	Skyworks有源晶振	XTAL OSC VCXO 102.4000MHZ CMOS	Si550	102.4 MHz	CMOS	3.3V	±20ppm
536AB156M250DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVPECL	Si536	156.25 MHz	LVPECL	3.3V	±20ppm
535BB156M250DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	Si535	156.25 MHz	LVDS	3.3V	±20ppm
536BB156M250DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	Si536	156.25 MHz	LVDS	3.3V	±20ppm
530BB156M250DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	Si530	156.25 MHz	LVDS	3.3V	±20ppm
531FC155M520DG	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVDS SMD	Si531	155.52 MHz	LVDS	2.5V	±7ppm
531BC000110DG	Skyworks有源晶振	XTAL OSC XO 148.35165MHZ LVDS	Si531	148.35165 MHz	LVDS	3.3V	±7ppm
530EC156M250DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVPECL	Si530	156.25 MHz	LVPECL	2.5V	±7ppm
530BC187M500DG	Skyworks有源晶振	XTAL OSC XO 187.5000MHZ LVDS SMD	Si530	187.5 MHz	LVDS	3.3V	±7ppm
530BC200M000DG	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si530	200 MHz	LVDS	3.3V	±7ppm
531FC148M500DG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si531	148.5 MHz	LVDS	2.5V	±7ppm
531FB125M000DG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVDS SMD	Si531	125 MHz	LVDS	2.5V	±20ppm
530BB100M000DG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si530	100 MHz	LVDS	3.3V	±20ppm
570BBC000159DG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si570	148.5 MHz	LVDS	3.3V	±20ppm
514BCA000112AAG	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Si514	10 MHz	LVDS	3.3V	±20ppm
530BC312M500DG	Skyworks有源晶振	XTAL OSC XO 312.5000MHZ LVDS SMD	Si530	312.5 MHz	LVDS	3.3V	±7ppm
531BC312M500DG	Skyworks有源晶振	XTAL OSC XO 312.5000MHZ LVDS SMD	Si531	312.5 MHz	LVDS	3.3V	±7ppm
530BC250M000DG	Skyworks有源晶振	XTAL OSC XO 250.0000MHZ LVDS SMD	Si530	250 MHz	LVDS	3.3V	±7ppm
531AC250M000DG	Skyworks有源晶振	XTAL OSC XO 250.0000MHZ LVPECL	Si531	250 MHz	LVPECL	3.3V	±7ppm
531BC250M000DG	Skyworks有源晶振	XTAL OSC XO 250.0000MHZ LVDS SMD	Si531	250 MHz	LVDS	3.3V	±7ppm
531FC250M000DG	Skyworks有源晶振	XTAL OSC XO 250.0000MHZ LVDS SMD	Si531	250 MHz	LVDS	2.5V	±7ppm
510BBA000110BAG	Skyworks有源晶振	XTAL OSC XO 148.35165MHZ LVDS	Si510	148.35165 MHz	LVDS	3.3V	±25ppm
511FBA148M500AAG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si511	148.5 MHz	LVDS	2.5V	±25ppm
511DBA100M000BAG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ HCSL SMD	Si511	100 MHz	HCSL	3.3V	±25ppm
511FBA135M000BAG	Skyworks有源晶振	XTAL OSC XO 135.0000MHZ LVDS SMD	Si511	135 MHz	LVDS	2.5V	±25ppm
514CBC001037BAG	Skyworks有源晶振	XTAL OSC XO 24.5760MHZ CMOS SMD	Si514	24.576 MHz	CMOS	3.3V	±25ppm
530AC106M250DG	Skyworks有源晶振	XTAL OSC XO 106.2500MHZ LVPECL	Si530	106.25 MHz	LVPECL	3.3V	±7ppm
530FC106M250DG	Skyworks有源晶振	XTAL OSC XO 106.2500MHZ LVDS SMD	Si530	106.25 MHz	LVDS	2.5V	±7ppm
531EC106M250DG	Skyworks有源晶振	XTAL OSC XO 106.2500MHZ LVPECL	Si531	106.25 MHz	LVPECL	2.5V	±7ppm
530EB50M0000DG	Skyworks有源晶振	XTAL OSC XO 50.0000MHZ LVPECL	Si530	50 MHz	LVPECL	2.5V	±20ppm
530AA156M250DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVPECL	Si530	156.25 MHz	LVPECL	3.3V	±50ppm
531FB150M000DG	Skyworks有源晶振	XTAL OSC XO 150.0000MHZ LVDS SMD	Si531	150 MHz	LVDS	2.5V	±20ppm
530EC148M500DG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVPECL	Si530	148.5 MHz	LVPECL	2.5V	±7ppm
530FC148M500DG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si530	148.5 MHz	LVDS	2.5V	±7ppm
530AB156M250DG	Skyworks有源晶振	XO-DIFFSE SINGLEFREQ OE_PIN2 10	Si530	156.25 MHz	LVPECL	3.3V	±20ppm
530AC25M0000DG	Skyworks有源晶振	XO-DIFFSE SINGLEFREQ OE_PIN2 10	Si530	25 MHz	LVPECL	3.3V	±7ppm
531AC100M000DG	Skyworks有源晶振	XO-DIFFSE SINGLEFREQ OE_PIN1 10	Si531	100 MHz	LVPECL	3.3V	±7ppm
570CBC000306DG	Skyworks有源晶振	XTAL OSC XO 22.5792MHZ CMOS SMD	Si570	22.5792 MHz	CMOS	3.3V	±20ppm
535AC156M250DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVPECL	Si535	156.25 MHz	LVPECL	3.3V	±7ppm
536AC125M000DG	Skyworks有源晶振	XO-DIFF < 0.2PS RMS OE_PIN1 10	Si536	125 MHz	LVPECL	3.3V	±7ppm
536AC156M250DG	Skyworks有源晶振	XO-DIFF < 0.2PS RMS OE_PIN1 10	Si536	156.25 MHz	LVPECL	3.3V	±7ppm
531FA312M500DG	Skyworks有源晶振	XO-DIFFSE SINGLEFREQ OE_PIN1 10	Si531	312.5 MHz	LVDS	2.5V	±50ppm
531BC311M040DG	Skyworks有源晶振	XTAL OSC XO 311.0400MHZ LVDS SMD	Si531	311.04 MHz	LVDS	3.3V	±7ppm
570BAB001641DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	Si570	156.25 MHz	LVDS	3.3V	±50ppm
570ABA001058DGR	Skyworks有源晶振	XTAL OSC XO 644.5300MHZ LVPECL	Si570	644.53 MHz	LVPECL	3.3V	±20ppm
570ABA001328DGR	Skyworks有源晶振	XTAL OSC XO 1.0660GHZ LVPECL SMD	Si570	1.066 GHz	LVPECL	3.3V	±20ppm
510GBA100M000BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CMOS SMD	Si510	100 MHz	CMOS	2.5V	±25ppm
510GBA125M000BAGR	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ CMOS SMD	Si510	125 MHz	CMOS	2.5V	±25ppm
510CBA25M0000AAGR	Skyworks有源晶振	XTAL OSC XO 25.0000MHZ CMOS SMD	Si510	25 MHz	CMOS	3.3V	±25ppm
510GBA100M000AAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CMOS SMD	Si510	100 MHz	CMOS	2.5V	±25ppm
510GBA125M000AAGR	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ CMOS SMD	Si510	125 MHz	CMOS	2.5V	±25ppm
510CBA8M00000BAGR	Skyworks有源晶振	XTAL OSC XO 8.0000MHZ CMOS SMD	Si510	8 MHz	CMOS	3.3V	±25ppm
510CBB16M0000BAGR	Skyworks有源晶振	XTAL OSC XO 16.0000MHZ CMOS SMD	Si510	16 MHz	CMOS	3.3V	±25ppm
510CBB24M5760BAGR	Skyworks有源晶振	XTAL OSC XO 24.5760MHZ CMOS SMD	Si510	24.576 MHz	CMOS	3.3V	±25ppm
510KBA000369BAGR	Skyworks有源晶振	XTAL OSC XO 369.0000KHZ CMOS SMD	Si510	369 kHz	CMOS	1.8V	±25ppm
510KBA16M0000BAGR	Skyworks有源晶振	XTAL OSC XO 16.0000MHZ CMOS SMD	Si510	16 MHz	CMOS	1.8V	±25ppm
510GAA100M000AAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CMOS SMD	Si510	100 MHz	CMOS	2.5V	±50ppm
510CCA000186BAGR	Skyworks有源晶振	XTAL OSC XO 186.0000KHZ CMOS SMD	Si510	186 kHz	CMOS	3.3V	±20ppm
510CCA000276BAGR	Skyworks有源晶振	XTAL OSC XO 276.0000KHZ CMOS SMD	Si510	276 kHz	CMOS	3.3V	±20ppm
510CCA23M0400BAGR	Skyworks有源晶振	XTAL OSC XO 23.0400MHZ CMOS SMD	Si510	23.04 MHz	CMOS	3.3V	±20ppm
510CCA25M0006BAGR	Skyworks有源晶振	XTAL OSC XO 25.0006MHZ CMOS SMD	Si510	25.0006 MHz	CMOS	3.3V	±20ppm
510CCA40M0000BAGR	Skyworks有源晶振	XTAL OSC XO 40.0000MHZ CMOS SMD	Si510	40 MHz	CMOS	3.3V	±20ppm
510CCA62M0000BAGR	Skyworks有源晶振	XTAL OSC XO 62.0000MHZ CMOS SMD	Si510	62 MHz	CMOS	3.3V	±20ppm
510CCA70M6560BAGR	Skyworks有源晶振	XTAL OSC XO 70.6560MHZ CMOS SMD	Si510	70.656 MHz	CMOS	3.3V	±20ppm
510CCAM105000BAGR	Skyworks有源晶振	XTAL OSC XO 105.0000KHZ CMOS SMD	Si510	105 kHz	CMOS	3.3V	±20ppm
510CCAM497500BAGR	Skyworks有源晶振	XTAL OSC XO 497.5000KHZ CMOS SMD	Si510	497.5 kHz	CMOS	3.3V	±20ppm
510CCAM497600BAGR	Skyworks有源晶振	XTAL OSC XO 497.6000KHZ CMOS SMD	Si510	497.6 kHz	CMOS	3.3V	±20ppm
510CCB32M0000BAGR	Skyworks有源晶振	XTAL OSC XO 32.0000MHZ CMOS SMD	Si510	32 MHz	CMOS	3.3V	±20ppm
510CCB4M00000BAGR	Skyworks有源晶振	XTAL OSC XO 4.0000MHZ CMOS SMD	Si510	4 MHz	CMOS	3.3V	±20ppm
510GCA24M0000BAGR	Skyworks有源晶振	XTAL OSC XO 24.0000MHZ CMOS SMD	Si510	24 MHz	CMOS	2.5V	±20ppm
510GCA66M6660BAGR	Skyworks有源晶振	XTAL OSC XO 66.6660MHZ CMOS SMD	Si510	66.666 MHz	CMOS	2.5V	±20ppm
510KCA000268BAGR	Skyworks有源晶振	XTAL OSC XO 268.0000KHZ CMOS SMD	Si510	268 kHz	CMOS	1.8V	±20ppm
510KCB000369BAGR	Skyworks有源晶振	XTAL OSC XO 369.0000KHZ CMOS SMD晶振	Si510	369 kHz	CMOS	1.8V	±20ppm
510KCB50M0000BAGR	Skyworks有源晶振	XTAL OSC XO 50.0000MHZ CMOS SMD	Si510	50 MHz	CMOS	1.8V	±20ppm
510CBA100M000BAG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CMOS SMD	Si510	100 MHz	CMOS	3.3V	±25ppm
510CBA125M000BAG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ CMOS SMD	Si510	125 MHz	CMOS	3.3V	±25ppm
510GBA125M000BAG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ CMOS SMD	Si510	125 MHz	CMOS	2.5V	±25ppm
510CCA13M5600AAGR	Skyworks有源晶振	XTAL OSC XO 13.5600MHZ CMOS SMD	Si510	13.56 MHz	CMOS	3.3V	±20ppm
510CCA19M2000AAGR	Skyworks有源晶振	XTAL OSC XO 19.2000MHZ CMOS SMD	Si510	19.2 MHz	CMOS	3.3V	±20ppm
510CCA22M5790AAGR	Skyworks有源晶振	XTAL OSC XO 22.5790MHZ CMOS SMD	Si510	22.579 MHz	CMOS	3.3V	±20ppm
510CCA25M0008AAGR	Skyworks有源晶振	XTAL OSC XO 25.0008MHZ CMOS SMD	Si510	25.0008 MHz	CMOS	3.3V	±20ppm
510CCB24M5760AAGR	Skyworks有源晶振	XTAL OSC XO 24.5760MHZ CMOS SMD	Si510	24.576 MHz	CMOS	3.3V	±20ppm
510GCA19M4400AAGR	Skyworks有源晶振	XTAL OSC XO 19.4400MHZ CMOS SMD	Si510	19.44 MHz	CMOS	2.5V	±20ppm
510CBA156M250AAGR	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ CMOS SMD	Si510	156.25 MHz	CMOS	3.3V	±25ppm
510CBA145M800BAGR	Skyworks有源晶振	XTAL OSC XO 145.8000MHZ CMOS SMD	Si510	145.8 MHz	CMOS	3.3V	±25ppm
510CBA2M00000AAGR	Skyworks有源晶振	XTAL OSC XO 2.0000MHZ CMOS SMD	Si510	2 MHz	CMOS	3.3V	±25ppm
510CBA4M91520AAGR	Skyworks有源晶振	XTAL OSC XO 4.9152MHZ CMOS SMD	Si510	4.9152 MHz	CMOS	3.3V	±25ppm
510CBA7M37280AAGR	Skyworks有源晶振	XTAL OSC XO 7.3728MHZ CMOS SMD	Si510	7.3728 MHz	CMOS	3.3V	±25ppm
510CBAM400000AAGR	Skyworks有源晶振	XTAL OSC XO 400.0000KHZ CMOS SMD	Si510	400 kHz	CMOS	3.3V	±25ppm
510CBB24M5760AAGR	Skyworks有源晶振	XTAL OSC XO 24.5760MHZ CMOS SMD	Si510	24.576 MHz	CMOS	3.3V	±25ppm
510KBA133M000BAGR	Skyworks有源晶振	XTAL OSC XO 133.0000MHZ CMOS SMD	Si510	133 MHz	CMOS	1.8V	±25ppm
510KBA28M6363AAGR	Skyworks有源晶振	XTAL OSC XO 28.6363MHZ CMOS SMD	Si510	28.6363 MHz	CMOS	1.8V	±25ppm
510CCA133M000BAGR	Skyworks有源晶振	XTAL OSC XO 133.0000MHZ CMOS SMD	Si510	133 MHz	CMOS	3.3V	±20ppm
510CCA133M333BAGR	Skyworks有源晶振	XTAL OSC XO 133.3330MHZ CMOS SMD	Si510	133.333 MHz	CMOS	3.3V	±20ppm
510JAA120M000BAGR	Skyworks有源晶振	XTAL OSC XO 120.0000MHZ LVDS SMD	Si510	120 MHz	LVDS	1.8V	±50ppm
511MAA123M457BAGR	Skyworks有源晶振	XTAL OSC XO 123.4570MHZ CMOS SMD	Si511	123.457 MHz	CMOS	3.3V	±50ppm
511SAA12M2880BAGR	Skyworks有源晶振	XTAL OSC XO 12.2880MHZ CMOS SMD	Si511	12.288 MHz	CMOS	1.8V	±50ppm
510CBA125M000AAG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ CMOS SMD	Si510	125 MHz	CMOS	3.3V	±25ppm
510GBA100M000AAG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CMOS SMD	Si510	100 MHz	CMOS	2.5V	±25ppm
510GBA125M000AAG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ CMOS SMD	Si510	125 MHz	CMOS	2.5V	±25ppm
510ABBM100000BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000KHZ LVPECL	Si510	100 kHz	LVPECL	3.3V	±25ppm
510HBA10M0000BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ HCSL SMD	Si510	10 MHz	HCSL	2.5V	±25ppm
511DBB100M000BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ HCSL SMD	Si511	100 MHz	HCSL	3.3V	±25ppm
510AAA124M512AAGR	Skyworks有源晶振	XTAL OSC XO 124.5120MHZ LVPECL	Si510	124.512 MHz	LVPECL	3.3V	±50ppm
510SAB12M0000AAGR	Skyworks有源晶振	XTAL OSC XO 12.0000MHZ CMOS SMD	Si510	12 MHz	CMOS	1.8V	±50ppm
510ACA26M0000BAGR	Skyworks有源晶振	XTAL OSC XO 26.0000MHZ LVPECL	Si510	26 MHz	LVPECL	3.3V	±20ppm
510BAA000244BAGR	Skyworks有源晶振	XTAL OSC XO 244.0000KHZ LVDS SMD	Si510	244 kHz	LVDS	3.3V	±50ppm
510BCA000383BAGR	Skyworks有源晶振	XTAL OSC XO 383.0000KHZ LVDS SMD	Si510	383 kHz	LVDS	3.3V	±20ppm
510ECA50M0000BAGR	Skyworks有源晶振	XTAL OSC XO 50.0000MHZ LVPECL	Si510	50 MHz	LVPECL	2.5V	±20ppm
510FCA32M0000BAGR	Skyworks有源晶振	XTAL OSC XO 32.0000MHZ LVDS SMD	Si510	32 MHz	LVDS	2.5V	±20ppm
510RCA125M000BAGR	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ CMOS SMD	Si510	125 MHz	CMOS	1.8V	±20ppm
511ACA11M0592BAGR	Skyworks有源晶振	XTAL OSC XO 11.0592MHZ LVPECL	Si511	11.0592 MHz	LVPECL	3.3V	±20ppm
511ACA24M0000BAGR	Skyworks有源晶振	XTAL OSC XO 24.0000MHZ LVPECL	Si511	24 MHz	LVPECL	3.3V	±20ppm
511ACA24M5760BAGR	Skyworks有源晶振	XTAL OSC XO 24.5760MHZ LVPECL	Si511	24.576 MHz	LVPECL	3.3V	±20ppm
511ECA100M000BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVPECL	Si511	100 MHz	LVPECL	2.5V	±20ppm
511FAA153M600BAGR	Skyworks有源晶振	XTAL OSC XO 153.6000MHZ LVDS SMD	Si511	153.6 MHz	LVDS	2.5V	±50ppm
511MCB66M0000BAGR	Skyworks有源晶振	XTAL OSC XO 66.0000MHZ CMOS SMD	Si511	66 MHz	CMOS	3.3V	±20ppm
515CAAM100000AAGR	Skyworks有源晶振	XTAL OSC VCXO 100.0000KHZ CMOS	Si515	100 kHz	CMOS	3.3V	±20ppm
515CAB32M7680AAGR	Skyworks有源晶振	XTAL OSC VCXO 32.7680MHZ CMOS	Si515	32.768 MHz	CMOS	3.3V	±20ppm
515CBA4M09600AAGR	Skyworks有源晶振	XTAL OSC VCXO 4.0960MHZ CMOS SMD	Si515	4.096 MHz	CMOS	3.3V	±20ppm
515CDA8M00000AAGR	Skyworks有源晶振	XTAL OSC VCXO 8.0000MHZ CMOS SMD	Si515	8 MHz	CMOS	3.3V	±20ppm
515GCA10M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ CMOS	Si515	10 MHz	CMOS	2.5V	±20ppm
510ABA115M000AAGR	Skyworks有源晶振	XTAL OSC XO 115.0000MHZ LVPECL	Si510	115 MHz	LVPECL	3.3V	±25ppm
510ABA24M5760AAGR	Skyworks有源晶振	XTAL OSC XO 24.5760MHZ LVPECL	Si510	24.576 MHz	LVPECL	3.3V	±25ppm
510ABB21M4000AAGR	Skyworks有源晶振	XTAL OSC XO 21.4000MHZ LVPECL	Si510	21.4 MHz	LVPECL	3.3V	±25ppm
510DBA10M0000AAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ HCSL SMD	Si510	10 MHz	HCSL	3.3V	±25ppm
510MBA2M00000AAGR	Skyworks有源晶振	XTAL OSC XO 2.0000MHZ CMOS SMD	Si510	2 MHz	CMOS	3.3V	±25ppm
511ABA24M0000AAGR	Skyworks有源晶振	XTAL OSC XO 24.0000MHZ LVPECL	Si511	24 MHz	LVPECL	3.3V	±25ppm
511EBB125M000AAGR	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVPECL	Si511	125 MHz	LVPECL	2.5V	±25ppm
Mfr Part #	Skyworks有源晶振	Description	Series	Frequency	Output	Voltage - Supply	Frequency Stability
510GBA76M8000BAGR	Skyworks有源晶振	XTAL OSC XO 76.8000MHZ CMOS SMD	Si510	76.8 MHz	CMOS	2.5V	±25ppm
510GBA88M7500BAGR	Skyworks有源晶振	XTAL OSC XO 88.7500MHZ CMOS SMD	Si510	88.75 MHz	CMOS	2.5V	±25ppm
510GBA96M0000BAGR	Skyworks有源晶振	XTAL OSC XO 96.0000MHZ CMOS SMD	Si510	96 MHz	CMOS	2.5V	±25ppm
510GBB125M000BAGR	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ CMOS SMD	Si510	125 MHz	CMOS	2.5V	±25ppm
510GBB26M0000BAGR	Skyworks有源晶振	XTAL OSC XO 26.0000MHZ CMOS SMD	Si510	26 MHz	CMOS	2.5V	±25ppm
510GBB50M0000BAGR	Skyworks有源晶振	XTAL OSC XO 50.0000MHZ CMOS SMD	Si510	50 MHz	CMOS	2.5V	±25ppm
510KBA100M000BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CMOS SMD	Si510	100 MHz	CMOS	1.8V	±25ppm
510KBA12M0000BAGR	Skyworks有源晶振	XTAL OSC XO 12.0000MHZ CMOS SMD	Si510	12 MHz	CMOS	1.8V	±25ppm
510KBA16M9344BAGR	Skyworks有源晶振	XTAL OSC XO 16.9344MHZ CMOS SMD	Si510	16.9344 MHz	CMOS	1.8V	±25ppm
510KBA21M2500BAGR	Skyworks有源晶振	XTAL OSC XO 21.2500MHZ CMOS SMD	Si510	21.25 MHz	CMOS	1.8V	±25ppm
510KBA24M0000BAGR	Skyworks有源晶振	XTAL OSC XO 24.0000MHZ CMOS SMD	Si510	24 MHz	CMOS	1.8V	±25ppm
510KBA24M7500BAGR	Skyworks有源晶振	XTAL OSC XO 24.7500MHZ CMOS SMD	Si510	24.75 MHz	CMOS	1.8V	±25ppm
